TRIPLELOCK

Highlights

Triplelock Plus is a single wall stainless steel flexible flue liner designed for atmospheric gas and kerosene appliances where the flue gas temperature does not exceed 260°C. Diameter range Triplelock plus 100 – 200mm.

High corrosion resistance.
Deep corrugations for high crush resistance and better flexibility when installing.
Strong seam construction resists the rigours of pulling the liner into place during construction.
Made from corrosion-resistant 316L stainless steel.
Leak resistant construction due to dovetail folded seam.

Atmospheric gas appliances where the flue gas temperature does not exceed 260°C.

Kerosene appliances where the flue gas temperature does not exceed 260°C.

TRIPLELOCK PLUS

Triplelock Plus is CE Certified to BS EN 1856-2 TÜV 0036 CPR 9195 043 with designations:

Triplelock Plus can be used in lined chimney on dry applications

T200 P1 W V2 L50010 O
T300 N1 W V2 L50010 O

Flue boxes

Flue box liner suitable for gas appliances.

LEARN MORE

Flexible Liner Lifetime Guarantee

We are confident in our products and so offer you (the owner) a generous guarantee in relation to the flexible  liner system (the System).
Provided that you comply in full with Your Responsibilities (below) and subject to the Small Print (overleaf), we  guarantee to you that the System will be free from defects for whichever is the greater of:
a period equal to the guarantee period of the appliance to which the Liner is first connected; or
20 years.
For example, if your System is fitted to an appliance with a guarantee period of 10 years, we will still guarantee  your System for 20 years.
In the unlikely event that the System becomes defective during the guarantee period, we will provide a like-for-like replacement for free (subject to your compliance with Your Responsibilities and subject to the Small Print).  If the same model is no longer available, we will replace it with a suitable alternative.

To benefit from our guarantee, you must:
Register your product within 30 days of installation at www.schiedel.com/uk and provide us with any evidence we reasonably request to prove that your System has been fitted by a HETAS approved installer or if not, has been signed off by a Building Control Inspector prior to use.
Familiarise yourself with the User Guide and comply with its provisions in full during the lifetime of your usage of the Liner (including by keeping the required records safe). Failure to do so will invalidate any guarantee claim.

Please be aware of the following:
Your guarantee is effective from the date on which your System is installed.
The guarantee extends only to us providing you with a replacement System. We will pay for the delivery  of that replacement to the address you have registered but you are responsible for any costs related  to the removal and transit of the defective System and the installation (and any associated costs) of the  replacement System.
The guarantee does not apply to the extent that defects in a System arise as a result of: (1) use of fittings  other than approved fittings; (2) any failure to comply with the instructions set out in the User Guide  (including those instructions relating to care and servicing of your System); (3) any alteration or repairs you make to it (or are made on your behalf) without our express written permission; (4) any accidental damage suffered during transit or otherwise; (5) any damage to the System that arises as a result of  the installation of the System (our guarantee is offered in respect of the System product alone and does  not cover the workmanship of any installation services you may obtain from any third party); or, (6) any  negligent or other improper use.
If we replace your System under this guarantee, the guarantee period will not be extended.
If you move house, you may transfer the benefit of the remaining period of the guarantee to the new  home owner within 3 months of the change of ownership. It is your responsibility to transfer the guarantee  by emailing us at sales.uk@schiedel.com and to notify the new owner of the terms of the guarantee  (including the new owner’s responsibilities). A failure to notify us of a transfer within the timescales will  invalidate the guarantee.
Where you claim that a System is defective, we reserve the right (1) to carry out any tests on that System,  and/or (2) to require access to that System, in both cases to satisfy ourselves that you have complied in  full with your responsibilities (including by adhering to the User Guide) and that your claim is valid. Please  cooperate with any reasonable requests we make in this regard.
This guarantee is offered in addition to your legal rights as a consumer.
Schiedel Chimney Systems Ltd.
Crowther Estate,
Washington, Tyne & Wear, NE38 0AQ.
sales.uk@schiedel.com
Tel. 0191 4161150
www.schiedel.com/uk

Your guarantee is effective from the date on which your System is installed.

The guarantee extends only to us providing you with a replacement System. We will pay for the delivery of that replacement to the address you have registered but you are responsible for any costs related to the removal and transit of the defective System and the installation (and any associated costs) of the replacement System and the provision of any necessary ancillary products, fittings or consumables.
The guarantee does not apply to the extent that defects in a System arise as a result of: (1) use of fittings other than approved fittings; (2) any failure to comply with the instructions set out in the User Guide (including those instructions relating to care and servicing of your System); (3) any alteration or repairs you make to it (or are made on your behalf) without our express written permission; (4) any accidental damage suffered during transit or otherwise; (5) any damage to the System that arises as a result of the installation of the System (our guarantee is offered in respect of the System product alone and does not cover the ancillary products or the consumables (such as lip seal gaskets) or the workmanship of any installation services you may obtain from any third party); or, (6) any negligent or other improper use.
If we replace your System under this guarantee, the guarantee period will not be extended.
If you move house, you may transfer the benefit of the remaining period of the guarantee to the new home owner within 3 months of the change of ownership. It is your responsibility to transfer the guarantee by emailing us at info@schiedel.co.uk and to notify the new owner of the terms of the guarantee (including the new owner’s responsibilities). A failure to notify us of a transfer within the timescales will invalidate the guarantee.
Where you claim that a System is defective, we reserve the right (1) to carry out any tests on that System, and/or (2) to require access to that System, in both cases to satisfy ourselves that you have complied in full with your responsibilities (including by adhering to the User Guide) and that your claim is valid. Please cooperate with any reasonable requests we make in this regard.
This guarantee is offered in addition to your legal rights as a consume

Schiedel Chimney Systems Ltd.
Crowther Estate,
Washington, Tyne & Wear, NE38 0AQ.

sales.uk@schiedel.com
Tel. 0191 4161150
www.schiedel.com/uk

Downloads

Flexible liners UK brochure

PDF (1.48 MB)

Flexible liners installation instructions

PDF (0.86 MB)

Chimney information and guides

Helpful sections for chimney installers

INSTALLER REWARDS

Money back for installing Schiedel.

LEARN MORE

INSTALLATION GUIDES

A range of guides on how to install our chimney systems.

LEARN MORE

STOVE SYSTEMS

Schiedel's DEFRA exempt and clearSkies 5 stove systems.

LEARN MORE

Which Flue Box & liner to choose

Radiant

Standard, Recessed, VRV T/Wall, VRV S/Wall, GF Box

Suitable for radiant and convector radiant gas appliances using natural gas or liquid propane

Diameter 125mm Flex conforming to BS EN1856-2

Back boiler unit

Back Boiler Box for Flex

Combined Appliances:
Gas fires/Back boiler

Diameter 125mm Flex conforming to BS EN1856-2

Living Flame Fires

ILFE Box Flex/TecnoFlex Plus

Inset live fuel effect live fires up to 15kw

Flex conforming to BS EN1856-2 Diameter as per appliance requirement

STANDARD FLUE BOX

Designed for use with radiant and decorative gas fires complying to BS 7977-1. Constructed with an aluminium liner and coated steel outer case

RECESSED FLUE BOX

Designed with the spigot at the rear, for use with larger radiant and decorative gas fires. for gas fires to BS 7977-1.

ILFE FLUE BOX
For use with Inset Live Fuel Effect gas fires complying to BS 7977-1, with a heat output not exceeding 7kw.

LARGE FLUE BOX FOR BACK BOILER
Adjustable in depth from 358mm - 480mm to accommodate a wide range of back boilers. Suitable for fires complying with BS 7977-2. Universal opening allowing connection to the boiler with B Vent or Flex.

GF FLUE BOX
Single wall design with sloping back to help fit some openings. For radiant gas fires complying with BS7977-1.

VRV TWIN WALL FLUE BOX
Twin wall construction for reduced condensation. Otherwise as VRV Single Skin Box.

VRV SINGLE SKIN FLUE BOX
Suitable for fires complying with BS7977-1. Fits most popular radiant gas fires including the widely used Valor Firelite Oxysafe. Reduced height, extra depth and extra large flanges minimise builders work on installation.

Details & Services

Flexible flue and chimney liners designed for lining an existing flue or chimney.
Triplelock Plus is a single wall stainless steel flexible flue liner designed for atmospheric gas and kerosene appliances where the flue gas temperature does not exceed 260°C. Diameter range Triplelock plus 100 – 200mm.

Hover to zoom

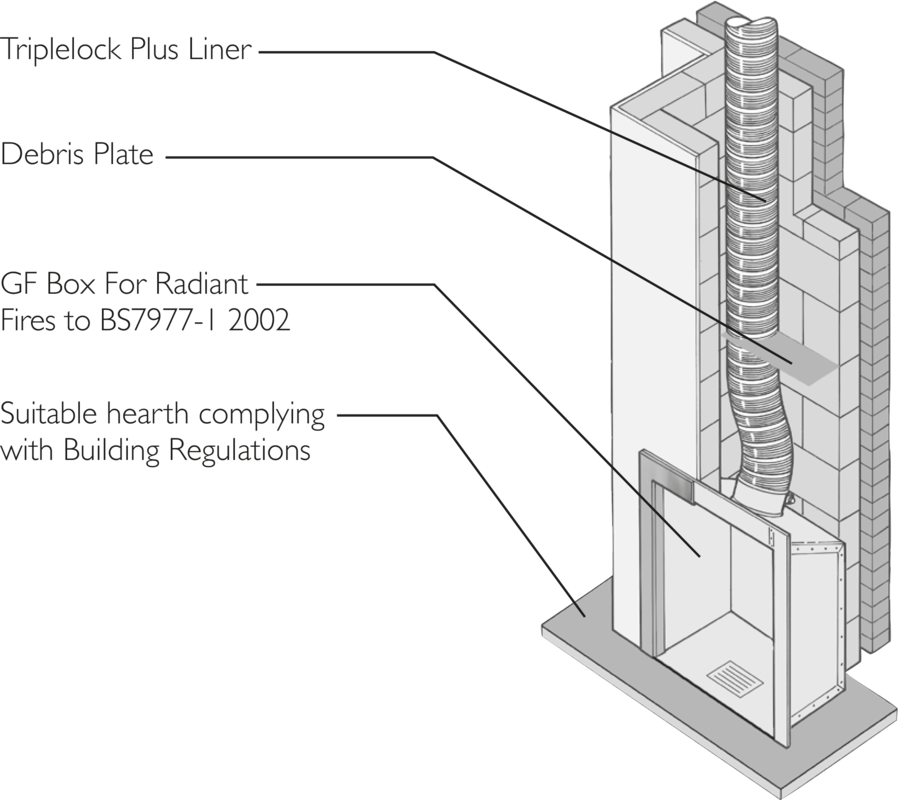

The structure of the system

Flexible Flue Single Wall Liner
High corrosion resistance.
Deep corrugations for high crush resistance and better flexibility when installing.
Strong seam construction resists the rigours of pulling the liner into place during construction.
