In order to meet the latest European building regulations, specific leakage and performance criteria have to be met, which are much more stringent than in the past. These criteria are key in relation to chimney products passing through combustible walls.
Schiedel Chimney Systems have invested heavily to provide tested and approved solutions to resolve these challenges and are proud to introduce their latest cutting edge product designed specifically for Air Tight, Energy Efficient and Timber Framed Buildings.

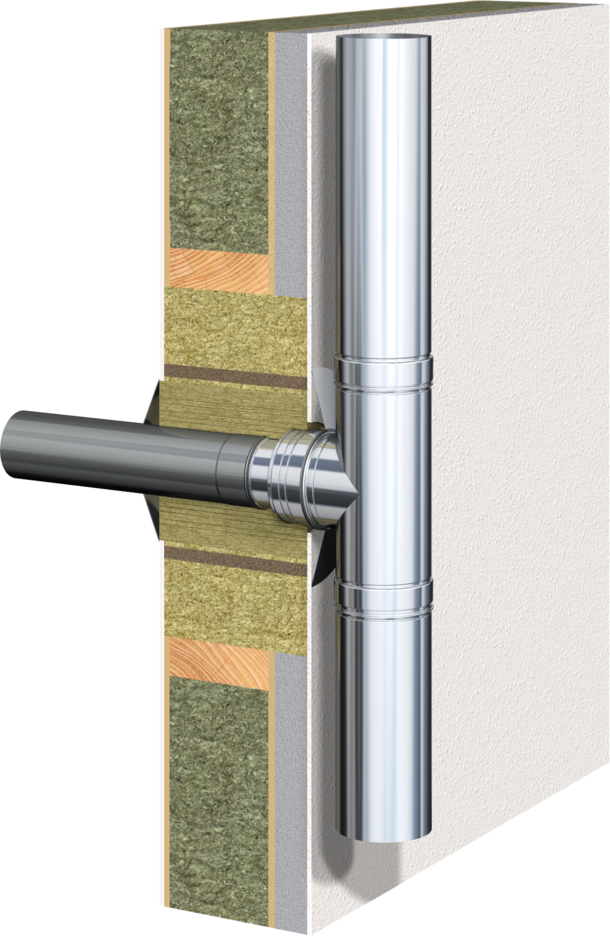

A short video showing an installation example with Ignis Protect.
Helpful sections for chimney installers
Use of 90° Ignis-Protect System in accordance with BS EN 15287-1 Acceptable alternative methods of connection methods
Where a horizontal connecting flue of more than 150mm is required to connect a solid fuel fired appliance to a chimney, an installation
method as per the examples below may be used provided the following criteria is met:

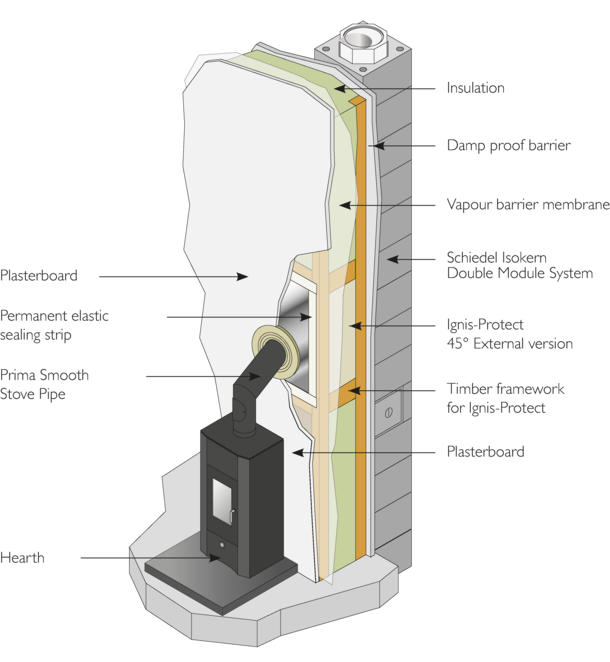

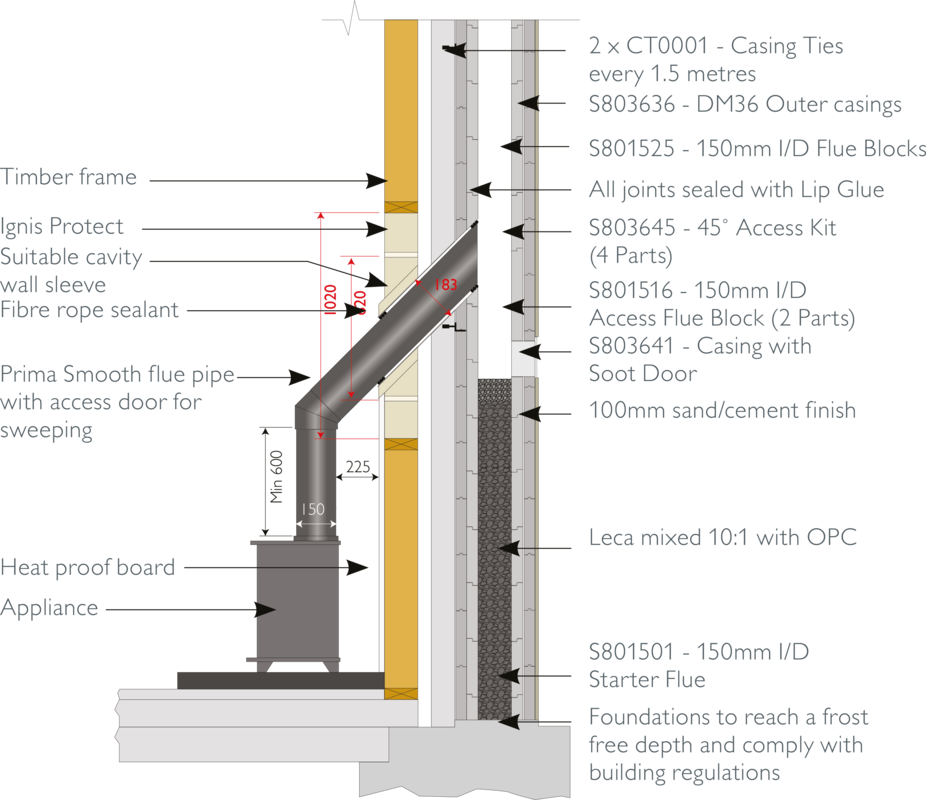

Typical installation of the Ignis Protect - 45 degree version with double module chimney system
Typical installation of the Ignis Protect - 45 degree version with double module chimney system

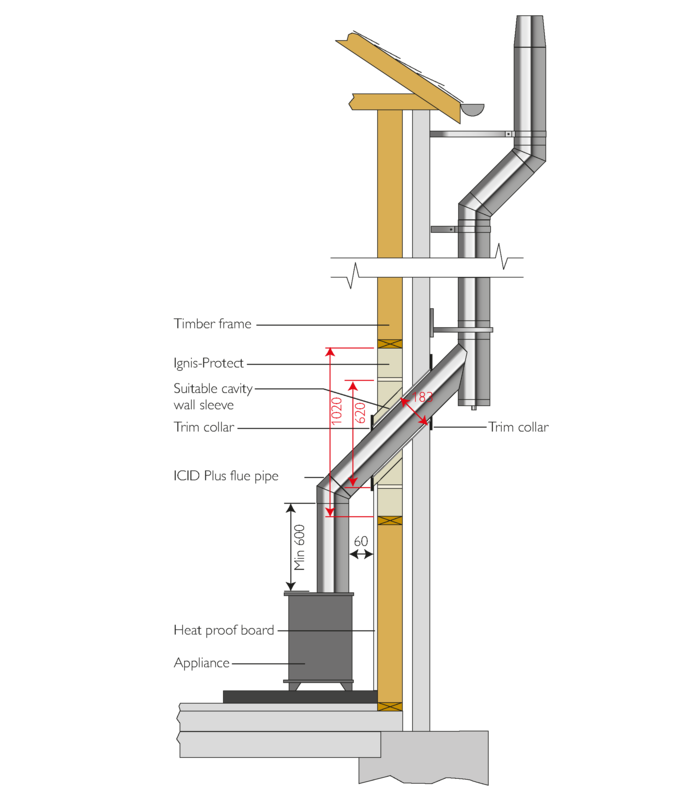

Ignis Protect with ICID Plus on a traditional timber frame wall.png
Typical connection type BS EN 15287. Note that where the connecting flue pipe from the appliance passes through any wall other than the existing chimney wall, the connecting flue pipe must be a system chimney of twin wall insulated design.

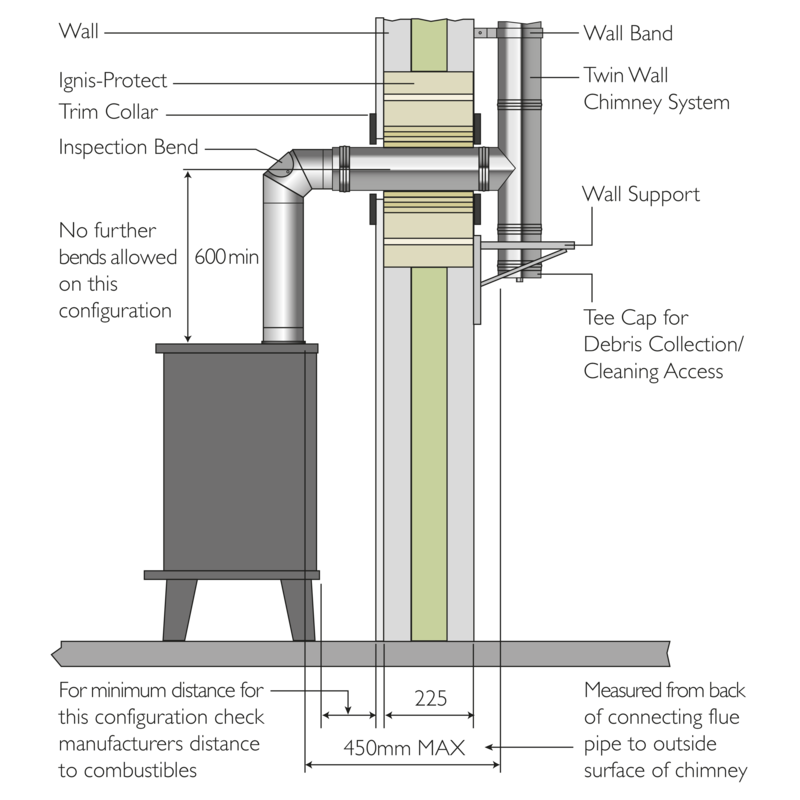

Typical connection type BS EN 15287 shing a top outlet twin wall connecting flue pipe into a twin wall system chimney.

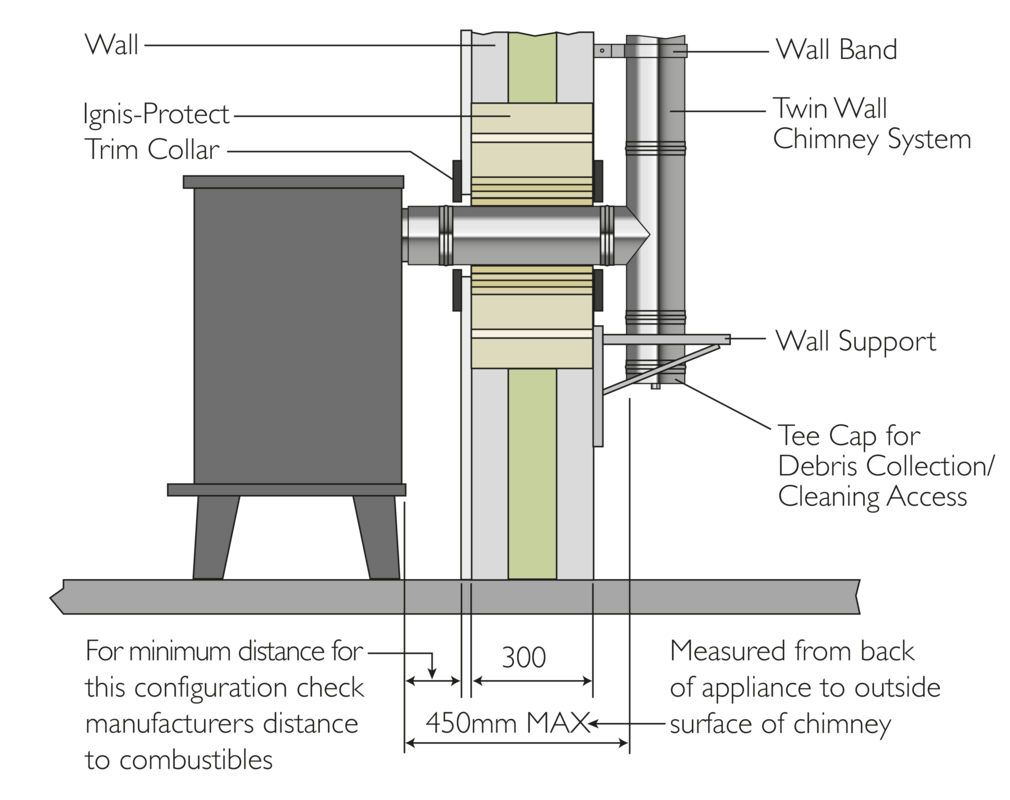

Typical connection type BS EN 15287 showing a rear outlet twin wall connecting flue pipe into an external twin wall system chimney.

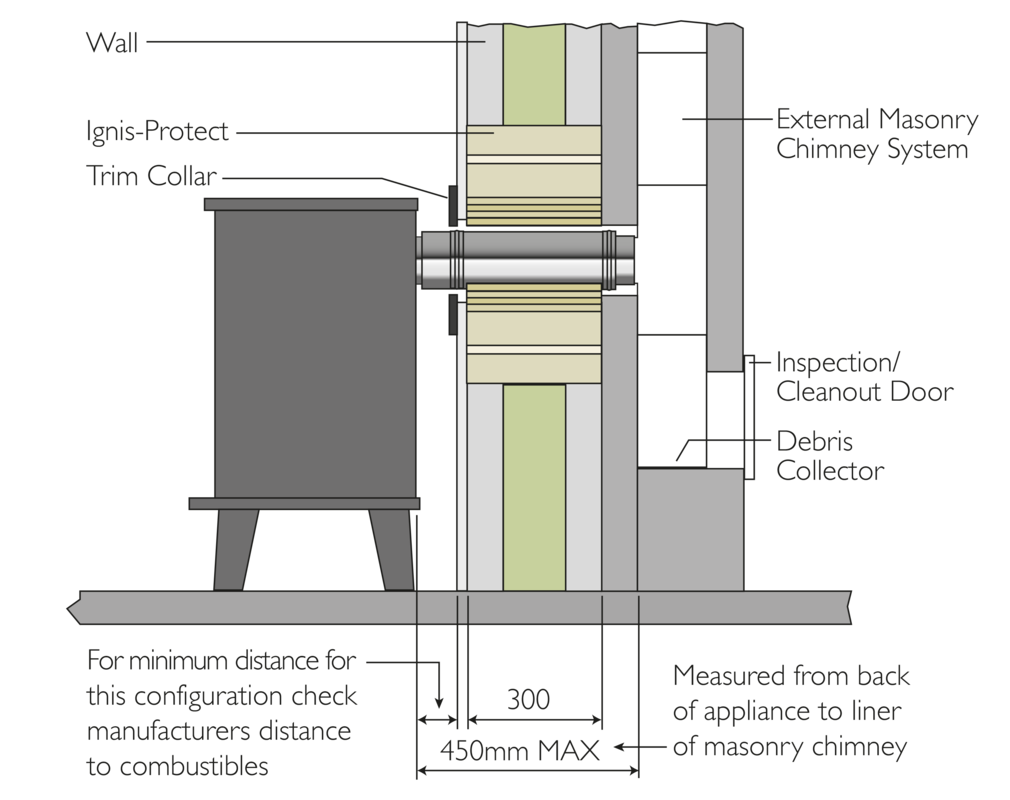

Typical connection type BS EN 15287 showing a rear outlet twin wall connecting flue pipe into external masonry chimney.
