Chimney installation app

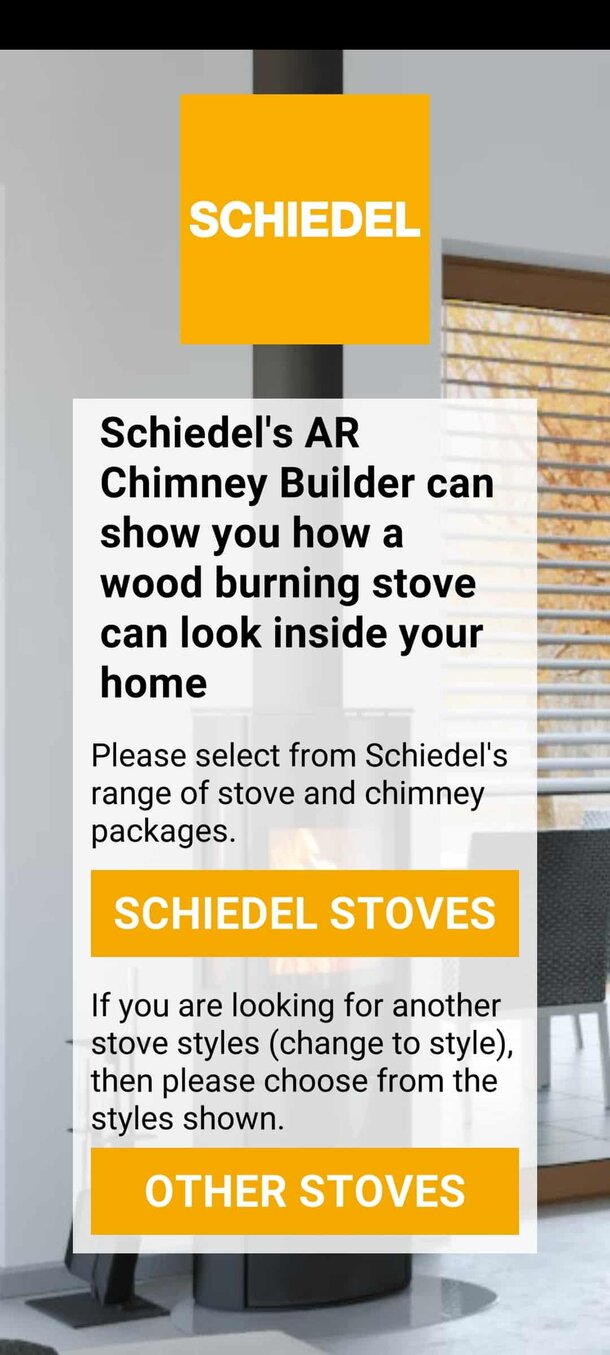

To see Schiedel’s range of Defra Exempt and clearSkies Level 5 stoves, please select the SCHIEDEL STOVES option.

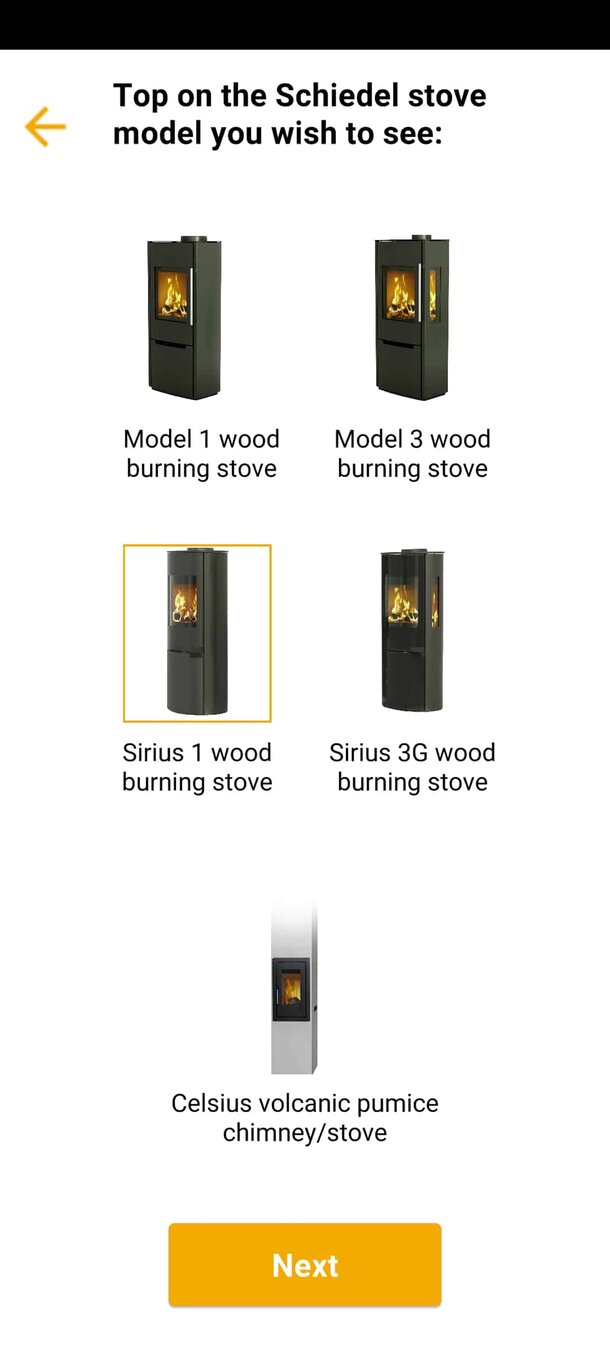

We have a range of five stoves within this App. Please choose the one which you are looking for.

This is easy. Most room heights are around 2400mm up to around 3000mm.

Select if this is a house or bungalow – as this selection calculates the appropriate stove and chimney package for you.

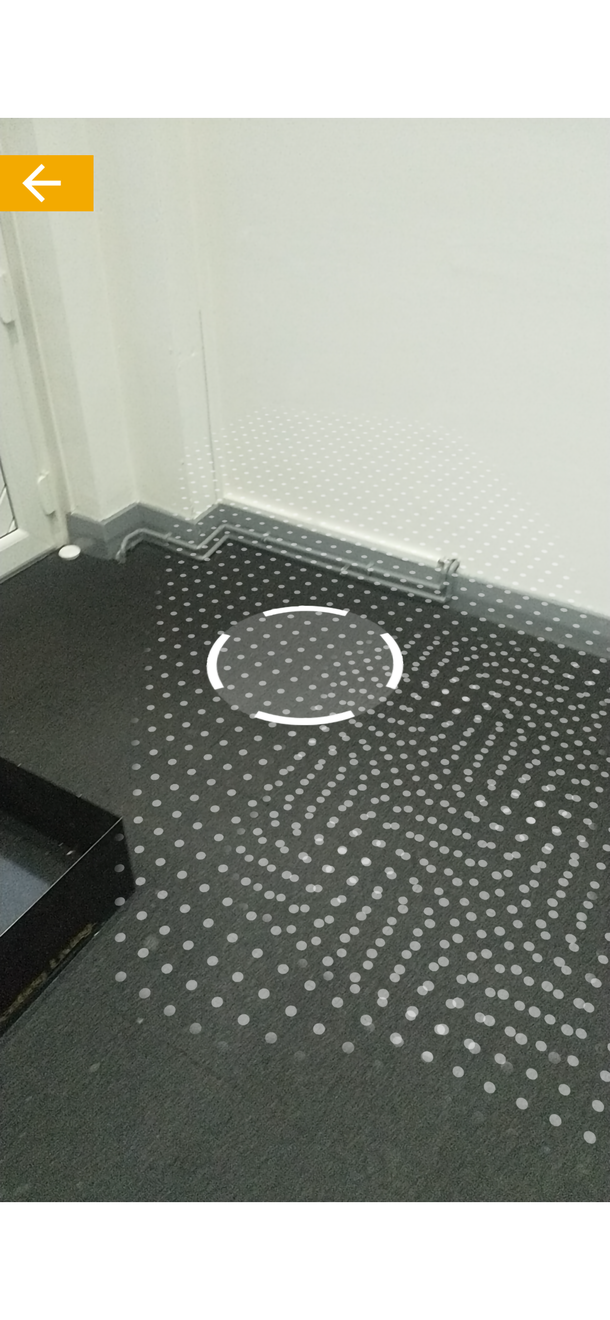

This is the exciting part 🙂 What you do on this screen is slowly move the phone around the room area you wish to place the stove. After a moment, you will see dots appearing on the floor and eventually, a circle will appear which defines the area where the stove is to appear. Press the circle when you are happy with the position.

Please note that this needs a clear surface and edges to work properly, so sometimes a blank room may need some reference points for the augmented reality detector to pick up points.

Once the circle is pressed, then you can see the stove! Please ensure you make no rapid movements with the device as this can cause the image to disappear.

This can be rotated, so it faces the correct way, by using your fingers on the touch screen.

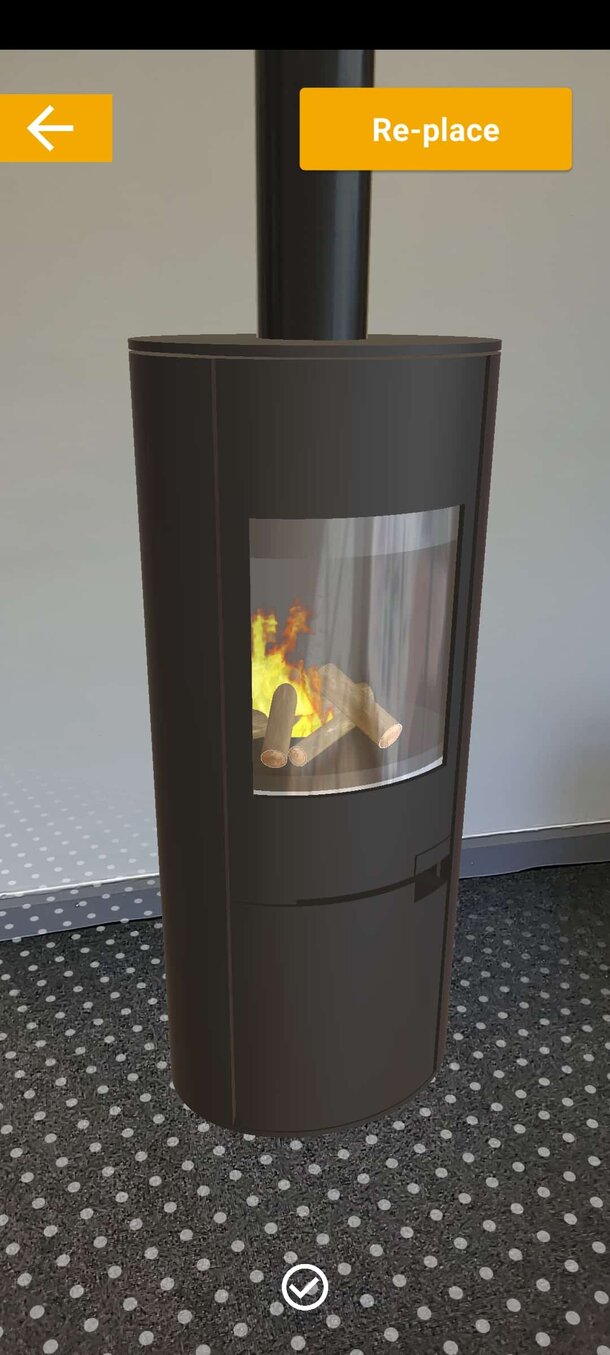

You can now walk up to the augmented reality stove from the front and from the sides to see how it looks in the room. A screen shot can be taken using your phones standard screen shot feature (show your friends!)

Once happy with this, click the tick button at the bottom and then click the clipboard button (both at the bottom of the visual).

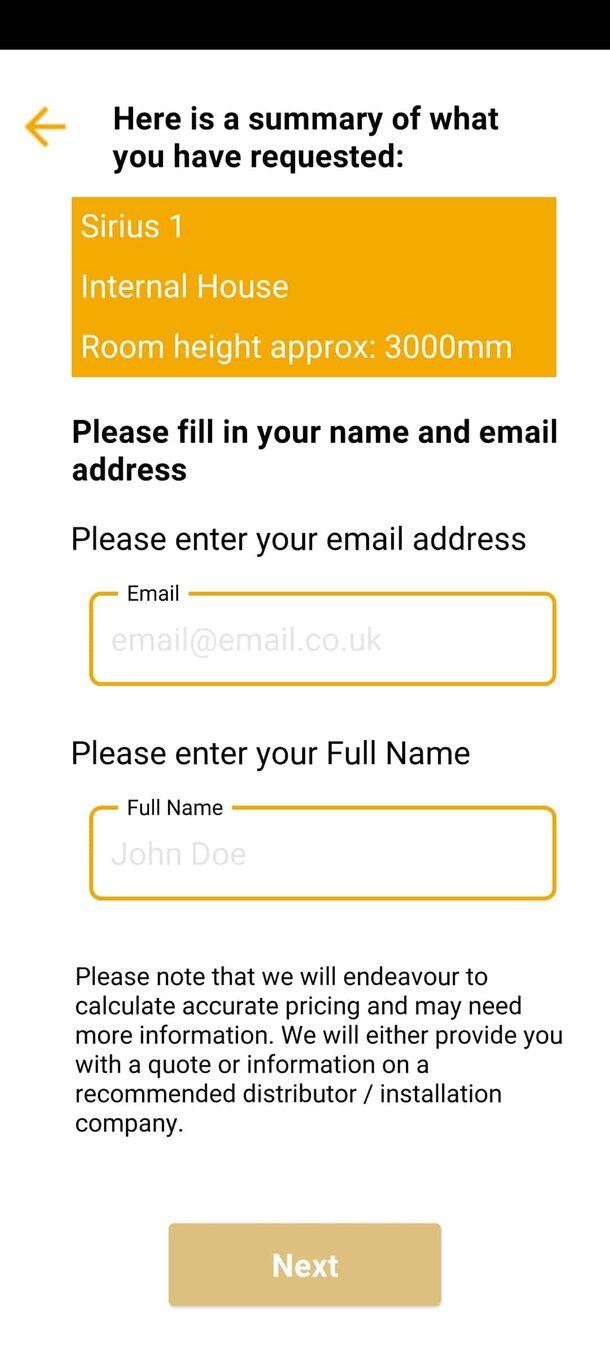

The next screen is simply adding your name and email where we can get in touch with you about any specific plans you may have.

We can advise on safety issues, pricing and delivery times, as well as installation advice.

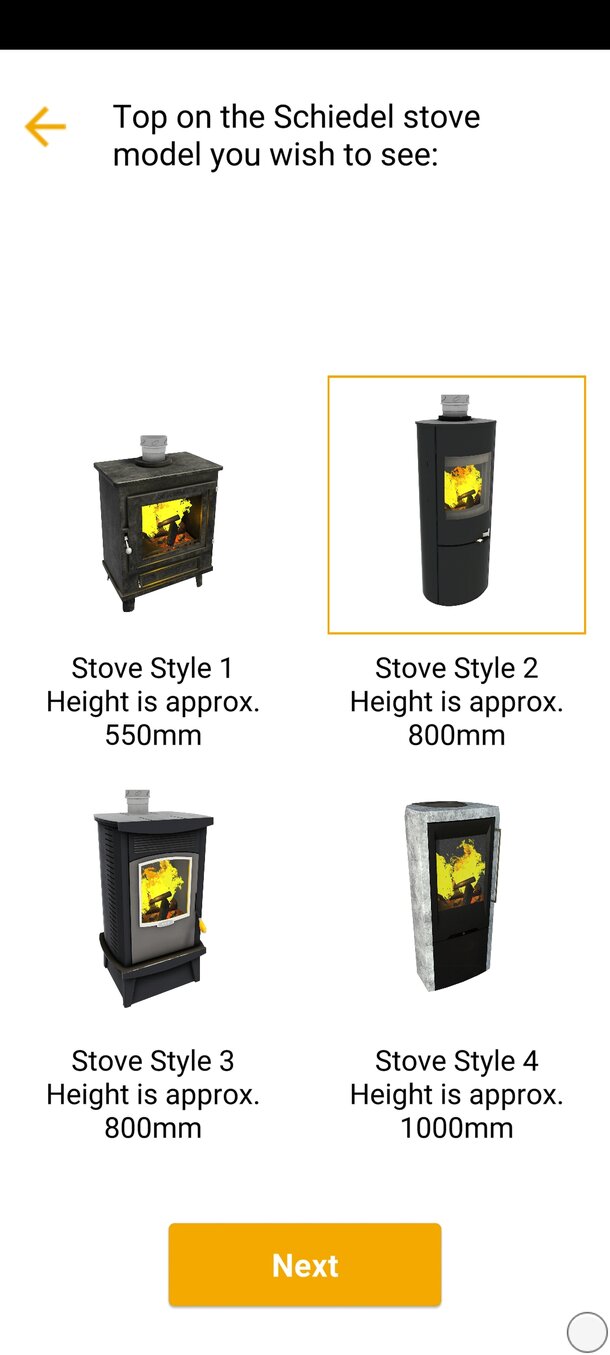

Select the stove style – You have already got an idea of what you are looking for so this is a guide so you can see what each version would look like in your home. Note. The heights given on these appliances are indicative. If you have already chosen your stove, then please enter the actual height of your chosen model

In this screen, you can choose plain or black flue pipes based on your choice of how you want the stove to look in the room with the flue pipe.

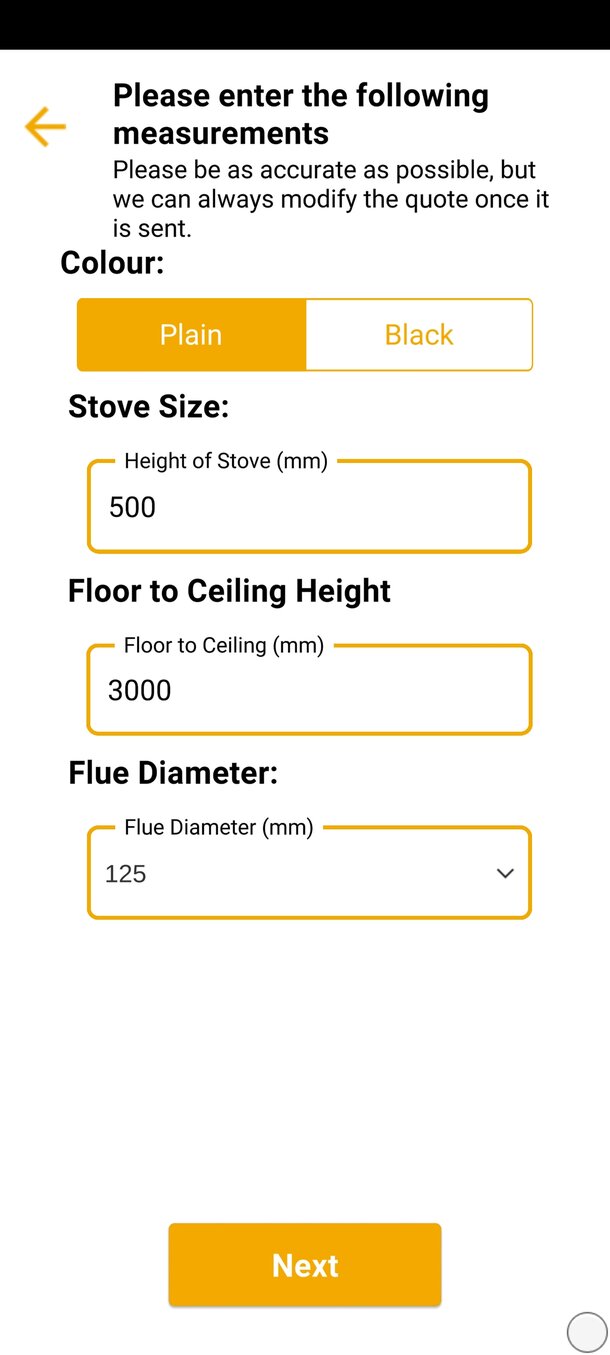

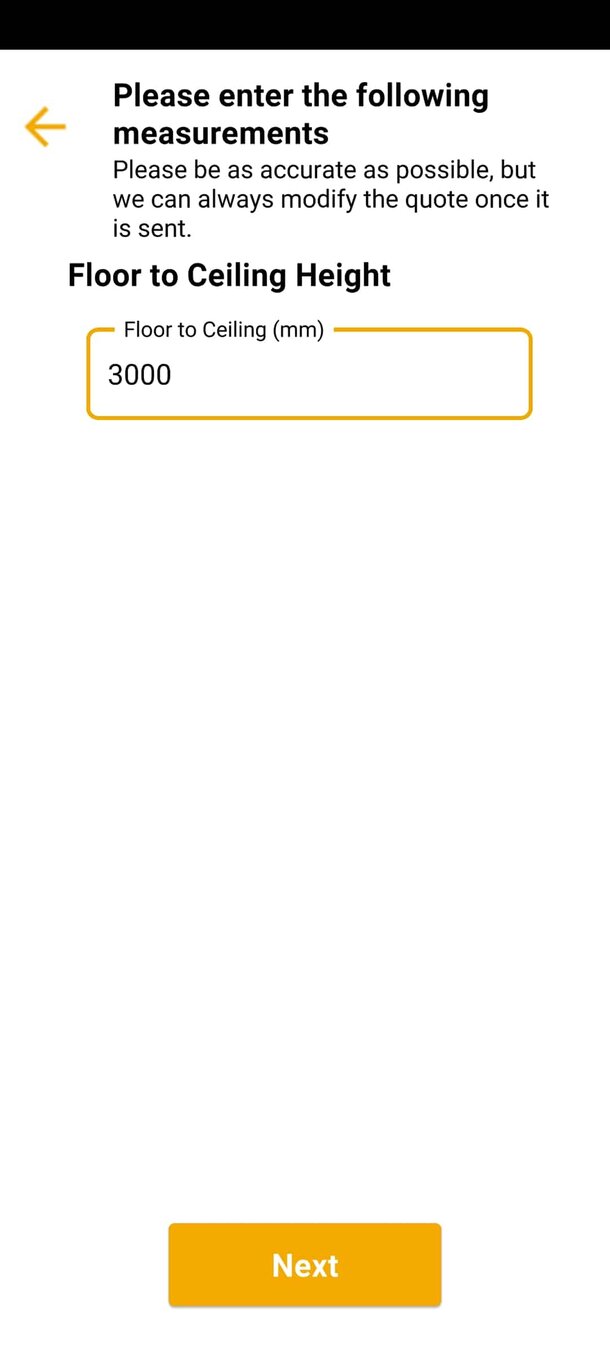

You would also need to enter the floor to ceiling height of your room here. This tends to be around 2400mm; however, you can enter the exact measurements if needed.

The flue pipe diameter also needs to be entered. This is based on what type of stove you are looking to get installed. Please check the stove specifications, but if uncertain the diameter is most likely to be 125mm or 150mm.

The app calculates either an internal or external free-standing system for a house or a bungalow. For example, an external one might be needed if you are looking for a stove in the corner of a room next to an outside wall of your home. An internal one can be chosen if, for example, you have no option of running a flue pipe on the outside wall (i.e. if you have a terraced house).

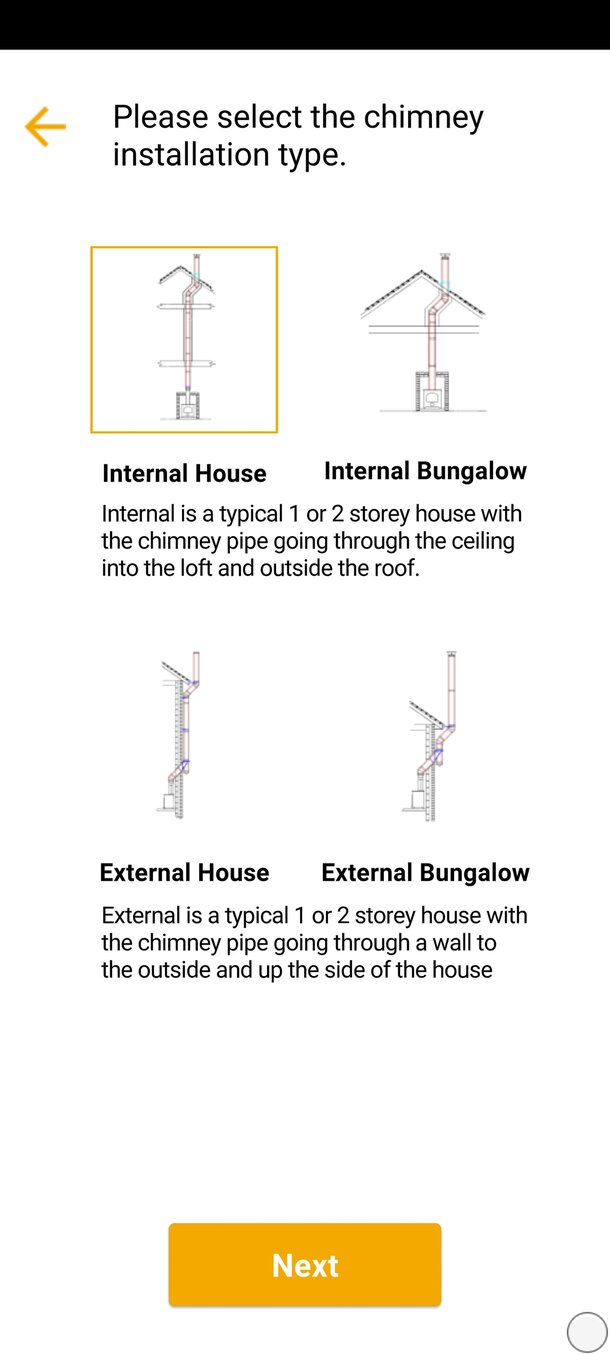

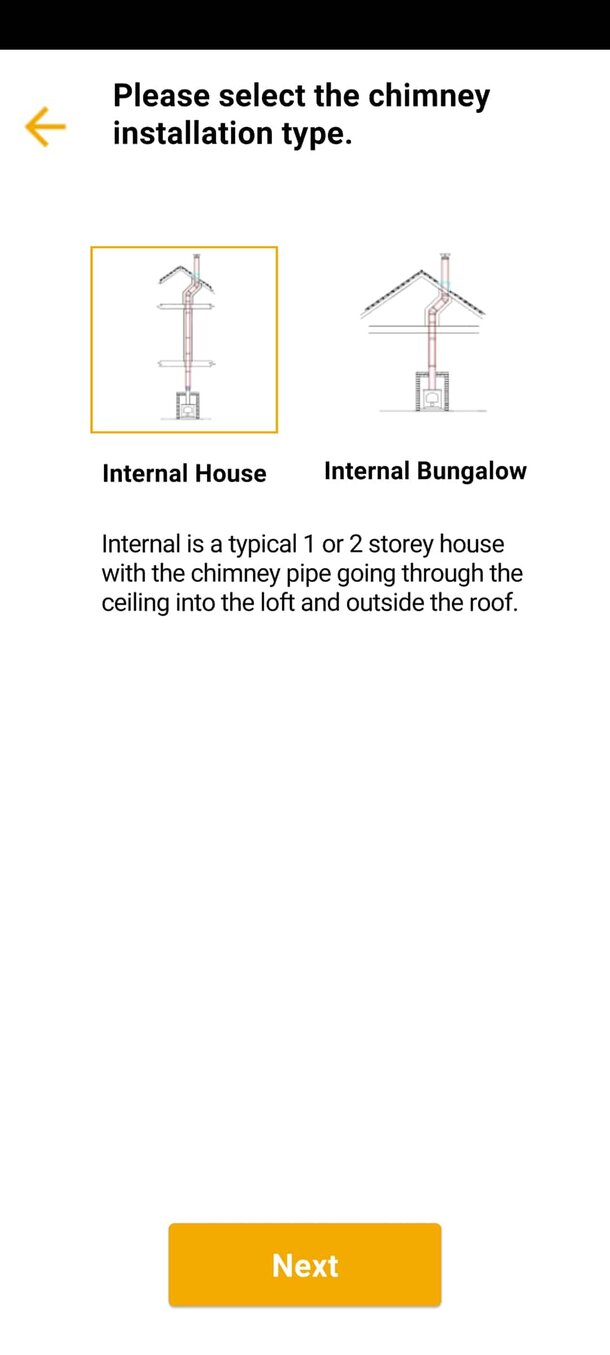

The four options are:

• Internal house
• Internal bungalow
• External house
• External bungalow

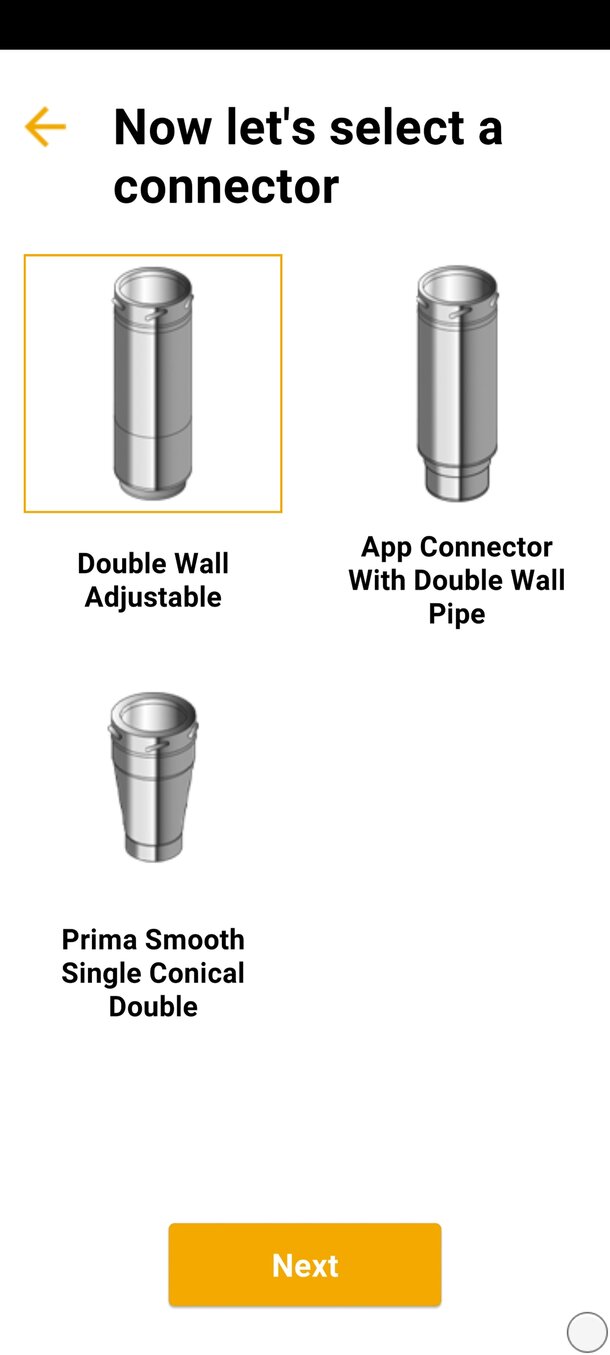

You can then choose the connection off the top of the stove. Schiedel will always recommend the Double Wall Adjustable because it is a straight pipe which can be easily adjusted for stove cleaning. The other options are a single wall steel pipe connecting to an insulated straight pipe or into a conical adaptor just below the ceiling.

In each case your chosen HETAS installer or we can advise on other options once you have sent in your quote.

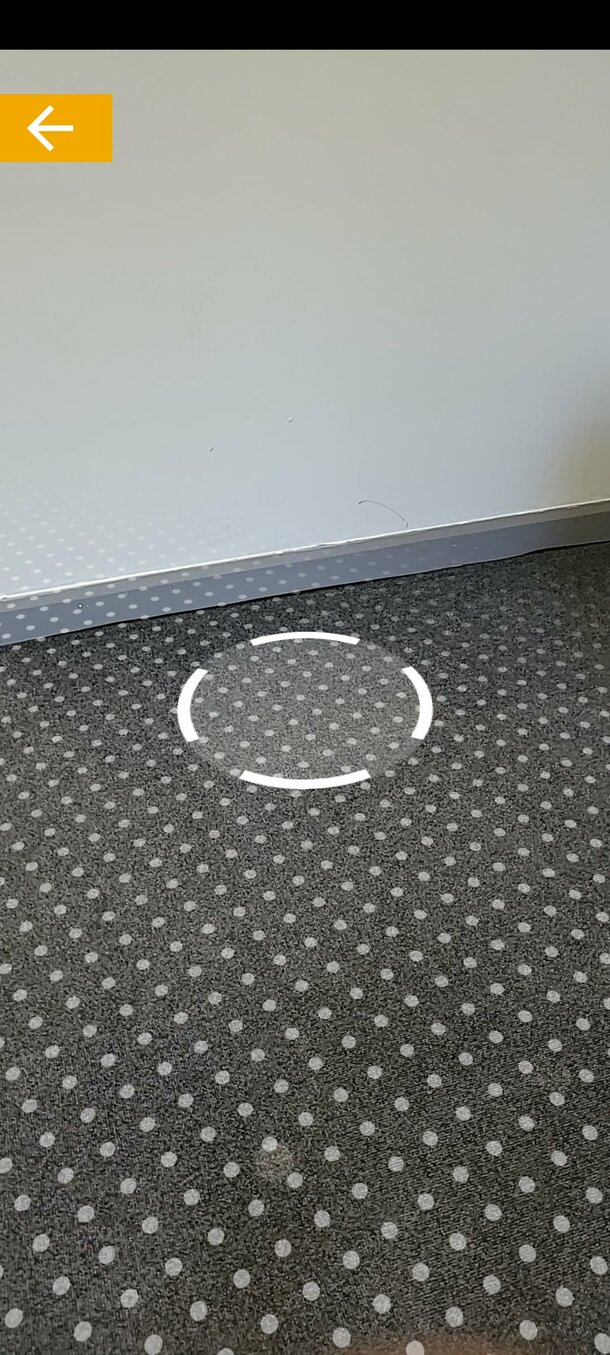

This is the exciting part 🙂 What you do on this screen is slowly move the phone around the room area you wish to place the stove. After a moment, you will see dots appearing on the floor and eventually, a circle will appear which defines the area where the stove is to appear. Press the circle when you are happy with the position.

Please note that this needs a clear surface and edges to work properly, so sometimes a blank room may need some reference points for the augmented reality detector to pick up points.

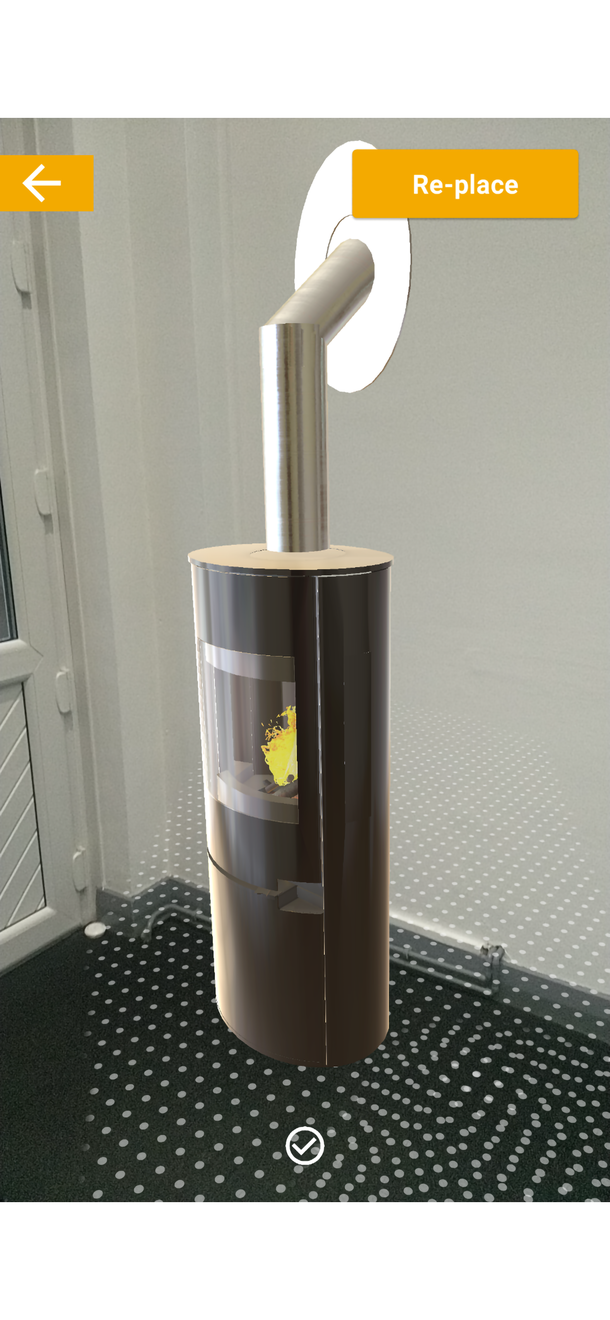

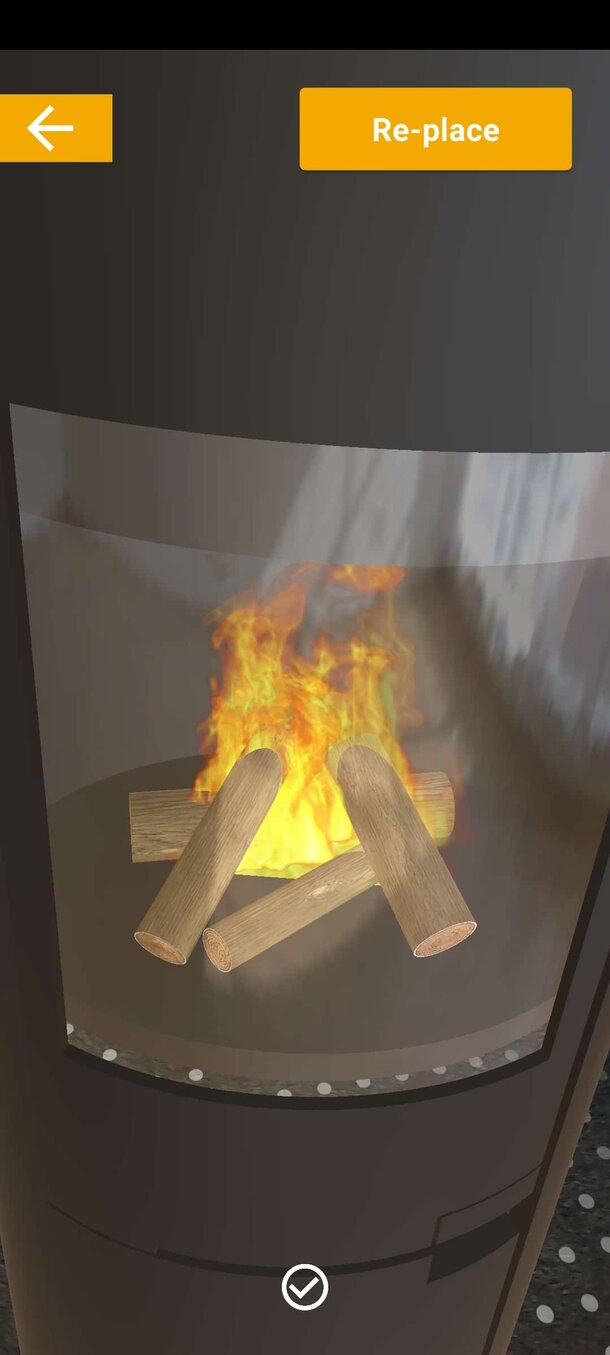

Once the circle is pressed, then you can see the stove! Please ensure you make no rapid movements with the device as this can cause the image to disappear.

This can be rotated, so it faces the correct way, by using your fingers on the touch screen.

You can now walk up to the augmented reality stove from the front and from the sides to see how it looks in the room. A screen shot can be taken using your phones standard screen shot feature.

Once happy with this, click the tick button at the bottom and then click the clipboard button (both at the bottom of the visual).

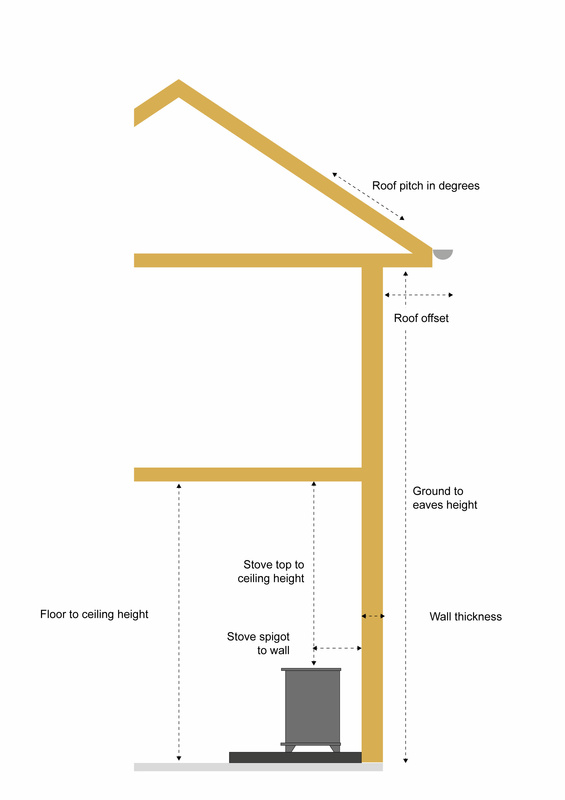

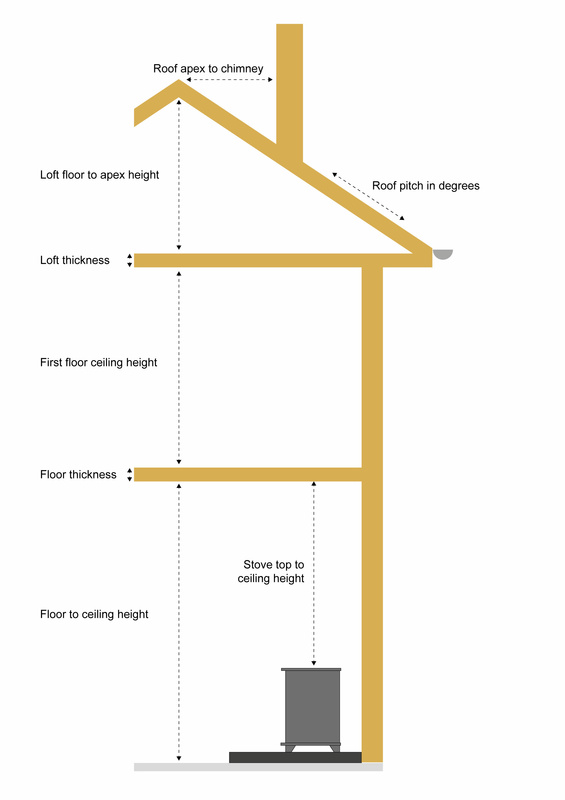

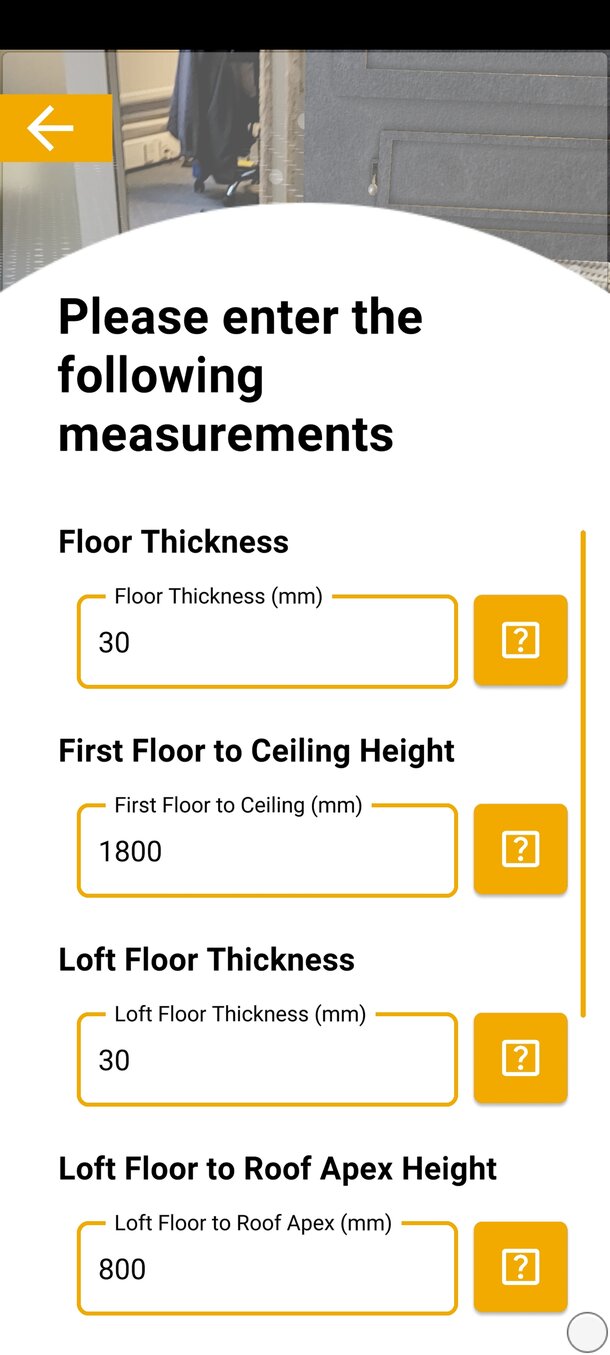

• Room height. This is usually around 2400mm.
• Height from top of stove to the room ceiling tends to be around 1600mm.
• The ceiling floor thickness is usually around 225mm to 300mm.
• Then it is the bedroom (or first floor) height, which can be similar to the downstairs room, so 2400mm.
• Loft floor thickness is around 225mm to 300mm.
• Loft floor to middle of roof (apex) height, could be 1400mm.
• Roof apex to chimney – this could be the approx. distance between the highest point of the roof to where the chimney is going out. Common figures are 600mm – 1000mm, etc. All depends on the positioning of the chimney downstairs.
• Roof pitch angle (or the slope of the roof) could be around 35 degrees.

• You choose the distance from where the pipe goes into the stove to the wall – this can be around 500mm or 600mm as an example figure.
• The wall thickness from inside the room to the outside brickwork is normally around 300mm to 400mm.
• Then you calculate the length from the ground outside of the house to the overhanging eaves (where the guttering is). This would be around 4500mm on a standard 2 storey house or 2400mm on a standard bungalow.
• Then you measure the overhang from the wall to the end of the eaves (usually around 300mm).

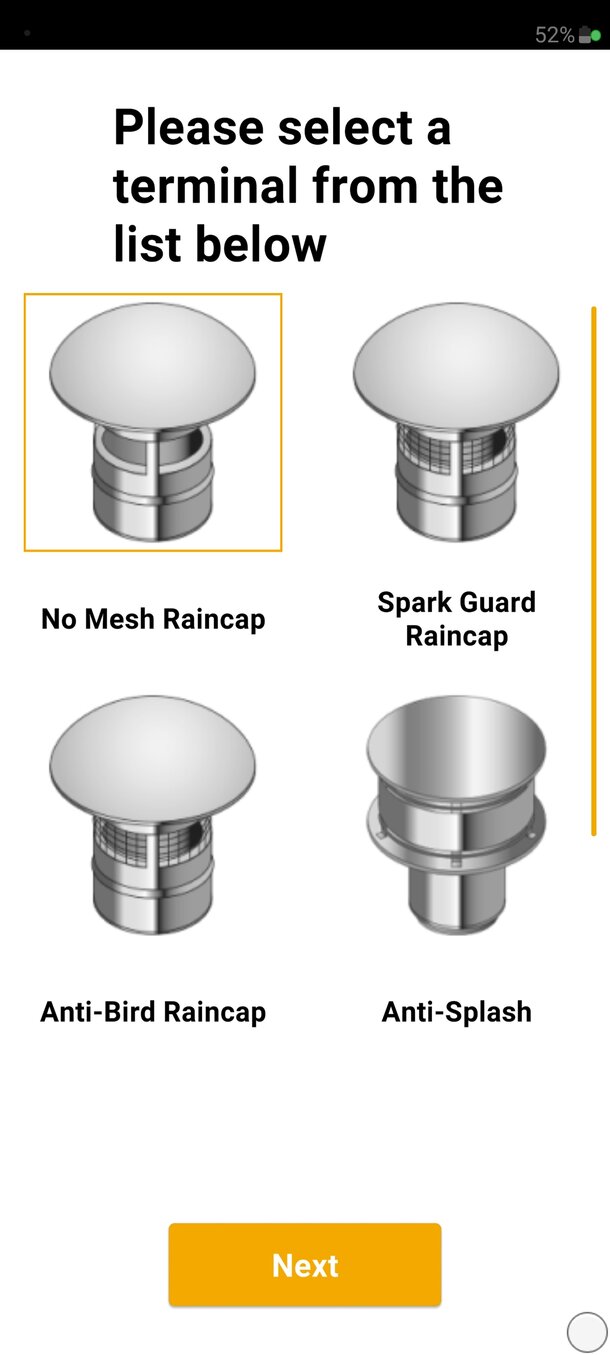

Finally, for both installs, either internal or external, you then choose a terminal type.

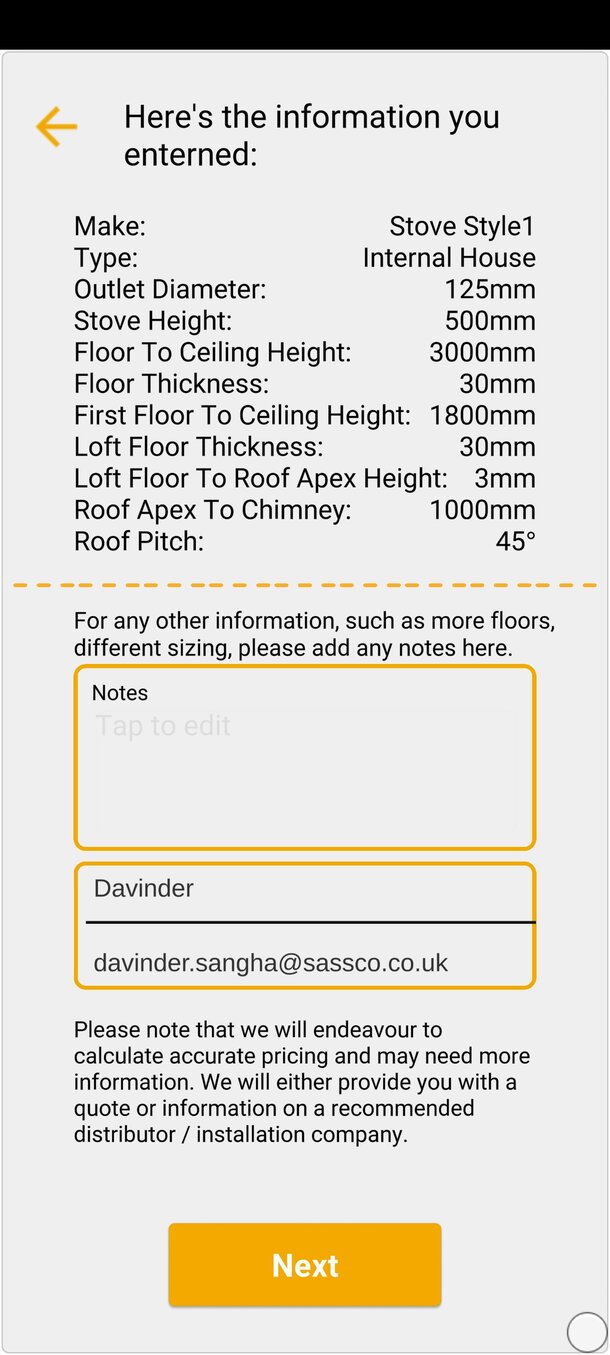

Now you will see a summary of your choices – plus a notes box. For example, if you think you need an offset due to an obstruction in the attic, then you could note it here. The quote will generate a parts list, which will then be confirmed following the site survey by the installer, who will provide the final quote for the installation and parts required.

clearSkies certified appliances meet the minimum performance level for Ecodesign (which is the minimum legal requirement for an appliance manufactured in the UK from 1st January 2022). These new Ecodesign Regulations represent a significant tightening of criteria over the current CE requirements and specify the minimum energy efficiency of the appliance and the maximum levels of emissions permitted which are:

• CO – Carbon Dioxide
• PM – Particulate Matter
• OGC – Organic Gaseous Compounds
• NOx – Nitrogen Oxide

DEFRA (Department of Environment, Farming and Rural Affairs) have strict guidelines on emissions. If a stove or appliance passes these emission level restrictions, then they appear on the official website as “appliances that meet specific criteria”.
