Choosing the correct chimney flue for your stove.

The purpose of this page is to guide you to the correct product for your stove.

A quick guide on which flue to use

There are essentially two parts to an effective chimney for a stove:

The Connecting Flue Pipe, connecting the stove to the chimney system or flexible liner.
The main chimney system, which can be composed of either:

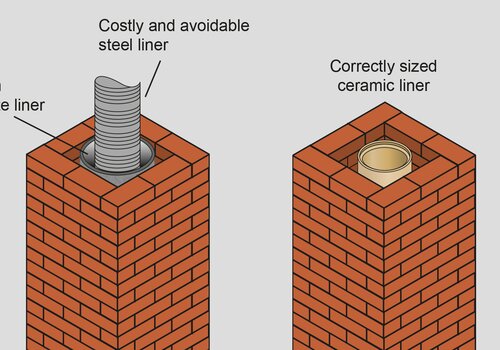

1. A Chimney Liner (Rigid or Flexible) in an existing masonry chimney or
2. A System Chimney (Twin Wall Insulated) for a new building or for retrofit where the building does not have an existing chimney.

Connecting flue pipe - Prima Smooth

Prima Smooth is the new stainless steel connecting flue pipe for use as an attractive and functional alternative to vitreous enamel.The joints in the pipe are formed to give
the appearance of a smooth continuous length from the stove through to the System Chimney or Chimney Liner. Prima Smooth is offered in two versions:

• High Grade 316L Stainless Steel in a Matt finish.
• Black painted 316L Grade Stainless Steel using special high temperature stove paint with a matt black finish.
Prima Smooth is a lightweight precision engineered product.

Chimney liners - Tecnoflex and Prima Smooth

TecnoFlex Plus is the leading twin skin flexible liner for solid fuel and wood burning appliances. Unique to Tecnoflex Plus is the NEW range of screw fit adaptors and terminals.

Prima Smooth is a rigid single wall chimney liner. It is manufactured from high quality 316L Grade Stainless Steel. The liner system has adjustable bends which are particularly useful if the stove is not directly in line with the chimney.

Twin wall systems - ICID

ICID is the new twin wall system chimney specifically designed for stoves. A key feature of the system is the easy to install twist lock connections.

A full range of accessories is available linking ICID with the other products in the Stove Range, as well as introducing the new aesthetically designed ventilated firestop plates for use in the living room.

DM pumice block system and chimney liners

Schiedel Isokern DM block system is a high quality System Chimney for use on New Build Housing projects. DM is fully tested and approved to BS EN1858 for uses as a system chimney.

Diameter range is Ø150 – 345mm*

Schiedel Pumice Flue Liner can be used for newbuild, extensions and relining existing chimneys.

The liner is available in 15 different sizes from diameter 150mm-1000mm

Prima Smooth – Connecting flue pipe

Prima Smooth is a stainless steel connecting flue pipe for use as an attractive and functional alternative to vitreous enamel.

316L Grade Stainless Steel
Attractive appearance
Lightweight
Available in matt black or steel finish
Diameter range 125 – 200mm
Available in 0.6mm and 1mm options

TecnoFlex Plus – Chimney liner

TecnoFlex Plus is the leading twin-skin flexible chimney liner designed to work with wood burning and solid fuel stoves.

Unique screw-fit adaptors and terminals
Available in 316L and 904L variants
Unique joint design giving exceptional strength to the lock
Meter length markers
Diameter range 125 – 200mm

Prima Smooth – Chimney Liner

Prima Smooth is a high quality 316L stainless steel single wall liner system suitable for wood and solid fuel.

Advanced corrosion-resistant design and construction
Precision engineered jointing system
Components designed to allow for thermal expansion
Diameter range 125 – 200mm
Available in 0.6mm and 1mm options

ICID – System chimney

The twin wall flue designed specifically for stoves.

Easy twist lock connection
Effective insulation
Competitive price
Diameter range 125 – 200mm (Internal diameters)
Available in Black Painted & Stainless Steel options

DM Double Module block for stoves, inserts, open fires & cookers

Available in Ø150 – 345mm

Quick and easy to assemble
Lightweight materials, easy to handle
Highly insulating pumice for better draw and minimum heat loss
Staggered joints for maximum safety and stability
Air gaps between outer casing and flue prevents surface staining
Good resistance to temperature variations gives the maximum performance for your appliance

Liner System – for new and existing chimneys

The pumice liner system comes in a range of 15 diameters from 150mm to 1000mm with T Liners, Liner Support Blocks, and Adaptors for ease of connection to the appliance

The insulated flue liner for traditional build

Lightweight materials, easy to handle
Highly insulating pumice for better draw and minimum heat loss
600mm and 1000mm lengths mean fewer joints and fast to install
15 flue sizes available
Good resistance to temperature variations gives the maximum performance for your appliance
