Replacement Flue for Tannochside School

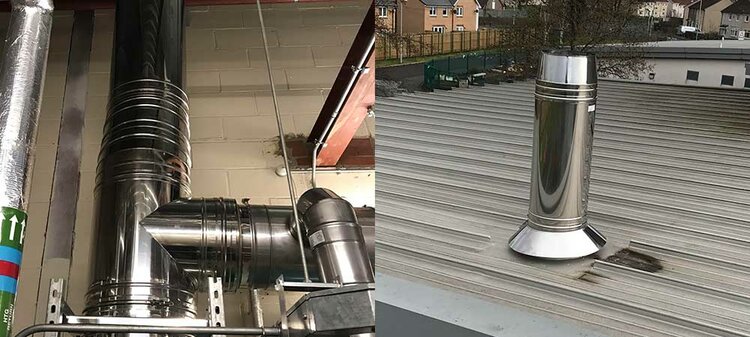

(Washington, Tyne and Wear, 14. February 2019) Another recent Non-residential project involved Tannochside School job was to strip out an existing flue and replace it with a Schiedel flue. The site was live, so it was done during the half-term holidays.

Commercial flue system

The task involved a cherry picker to take out the existing riser, to be replaced by a Prima Plus boiler connection / common header and an ICS Plus riser.



ICS is a twin wall insulated chimney system for use on open and closed stoves, open fires, residential and small commercial multi fuel appliances, with continuous operating temperatures up to 450°C and short firing up to 550°C.



ICS is converted into ICS Plus by adding a lip seal to each component with a male form on the liner (see the video below). This creates a twin wall insulated chimney system designed for the new generation of condensing gas and oil appliances, with continuous operating temperatures up to 200°C, short firing up to 250°C, and positive pressure up to 200pa at the appliance outlet.

More related content

News

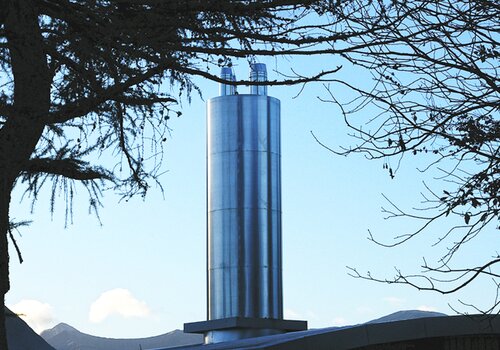

Lochaber High School

Lochaber High School is a six-year comprehensive school, which serves the town of Fort William and the greater Lochaber area. It was founded...

Read now

News

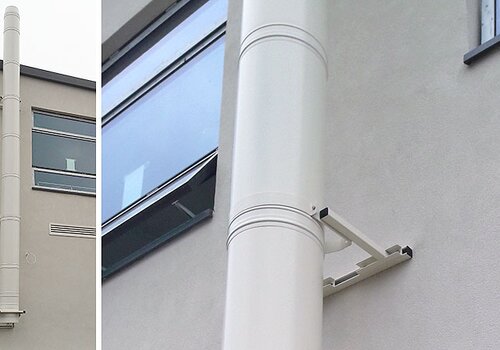

Oyster white chimney for Thorp Academy in the north east

This project, involving both Prima Plus and ICS Plus, was for Thorpe Academy, a secondary school in Ryton, Tyne & Wear.

Read now

News

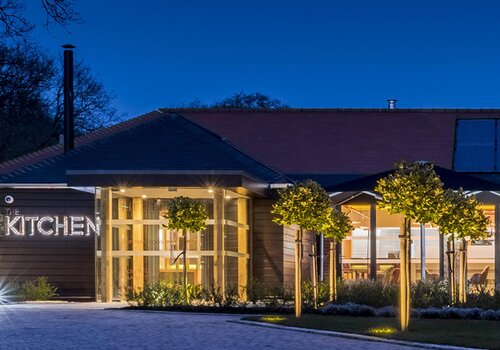

A pretty big pizza oven!
