Chimney Flue for Hayden’s Bakery

(Washington, Tyne and Wear, 16. July 2018) If you are on a diet, then it’s not recommended to visit Haydens Bakery, as you will see some of the most exquisite looking sweet delights you can imagine.

Commercial installaton

So, our Schiedel Commercial team, who aren’t too concerned about their figures, were pleased to be working with BSS Southamption to install 4 ICS flue systems to replace the existing flues, for the family bakery, established in the 1976, but now supplying some of the UK’s most respected food retailers and coffee shops.

The installation was in two stages, with Stage 1 to install two systems and Stage 2 to install the remaining two systems.

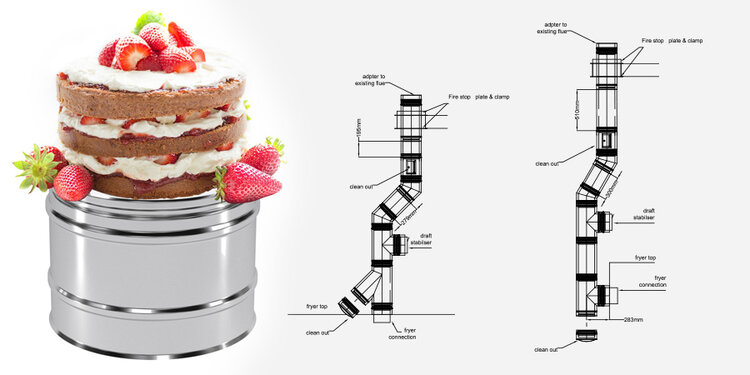

The flues specified were ICS, which is a twin wall flue manufactured with a stainless steel liner and stainless steel case. It is insulated with a 25mm thick high-density (128kg/m³) superwool blanket.

  • Continuous Firing Temp: 450° C
  • Short Firing Temp: 550° C
  • Pressure Capabilities: 40Pa
  • Fire Rating: – 4hrs to BS476 Part 20
  • Thermal Shock: – 1000°C
  • Ave. Thermal Resistance (200°C): 0.508m² K/w

For more information, don’t hesitate to contact us today for any help and advice if you have a similar project.

More relevant content

News

A brief history of chimneys.

We always have that perfect vision of people gathered round a roaring fire on a cold day, protected in a warm and cosy home.

Read now

News

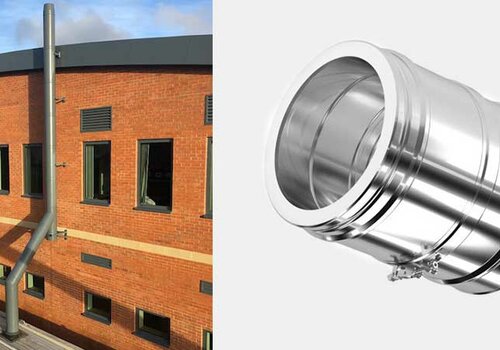

Biomass Installation at Hartpury College.

Biomass, being an organic material that comes from plants and animals, is an ideal source of energy as it’s renewable. Which is why the Spor...

Read now

News

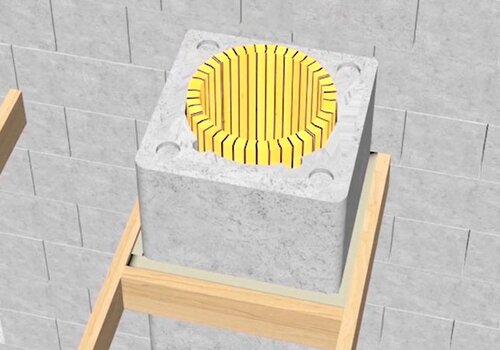

3D Animation: Stove installation with Schiedel Swift
