UK PLUS

Highlights

UK+ (UK plus) is suitable for both condensing and non-condensing applications with low flue gas temperatures in both negative pressure and positive pressure situations. The UK+ system stands out for its tailored boiler connections and termination options, accommodating a wide range of installation needs. Made from premium stainless steel with a pre-installed seal ring, it offers both durability and ease of setup. Its compatibility with other Schiedel systems ensures effortless integration, providing a dependable solution for managing flue exhaust and combustion air in various applications.

Versatile Design & Customization

The UK+ system features custom-fabricated boiler connections and options for both horizontal and vertical terminations, ensuring a tailored fit for various installation requirements. This versatility allows for seamless integration into different setups, enhancing overall system adaptability.

Quality construction & Installation

Constructed from high-quality stainless steel, both the inner and outer casings of the UK+ system guarantee durability and resistance to corrosion. The system also includes a pre-assembled lip seal ring, which simplifies the installation process. Lightweight components further ease handling and assembly, making the system both robust and user-friendly.

Compatibility

The UK+ system is designed to be compatible with ME, UE, and MF systems, allowing for flexible integration with existing setups. This compatibility ensures that the UK+ system can be easily incorporated into various applications, providing efficient flue and combustion air solutions for closed combustion appliances.

Details & Services

Find out more about the details and services for the UK Plus flue gas system, such as the design, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.

Hover to zoom

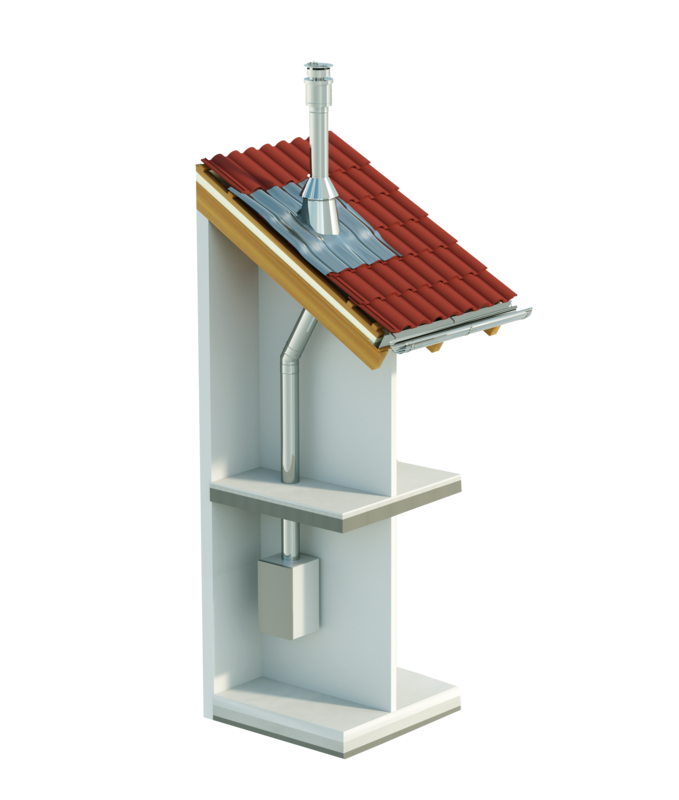

The structure of the system

The modular UK+ concentric system is designed to be mounted on the wall and connects seamlessly to a heating unit. Once connected, it routes through a ceiling duct from the room to the roof. The system culminates in eihter a vertical or horizontal termination.

Technical data

Basic data (dimensions, weight & co.)
Diameter (external)	80/130, 100/150, 130/200 mm
Wall thickness per diameter (internal)	0,4 mm
Wall thickness per diameter (outside)	0,4 mm

Application
Flue gas temperature (dry)	≤ 400 °C
Operating temperature under negative pressure	< 600 °C
Operating temperature under positive pressure	≤ 200 °C
Material (Inner liner)	AISI 316L-EN 1.4404
Material (Outer case)	Material No.: 1.4301

General product features
Performance features	T200 – P1 – W – V2 – L50040 – O00, T200 – P1 – W – Vm – L50040 – O00, T600 – N1 – W – V2 – L50040 – O50, T600 – N1 – W – Vm – L50040 – O50, T200 – P1 – W – V2 – L50040 – O30, T200 – P1 – W –
Operating	Negative pressure (N), Positive pressure (P-H), Dry, Humid
Colour	White
Notes	EN 1856-2 Connecting flue pipe: 0036 – CPR – 91236-058; EN 1856-1 System chimney: 036 – CPR – 91236-057; Connection: Push fit system, elements secured by locking band
