Highlights

The Building Energy Act increases the requirements for house construction as well as industrial and commercial construction. Renewable energy sources and tight building envelopes characterize the standard for energy-efficient and passive houses, and the requirements for each individual component are increasing. In the heating technology sector, the ABSOLUT energy-saving chimney offers double safety. On the one hand, the ABSOLUT is always the right choice for liquid, gaseous or any type of biomass fuel, such as pellets, wood or wood chips, thanks to its universal range of applications. On the other hand, the unique compound design and components of the ABSOLUT chimney system ensure compliance with the current Energy Saving Ordinance. We have summarized all the advantages of the chimney system for you:

Energy efficient

A thermally insulated compound lightweight concrete casing block (foam concrete) with integrated insulation and an optimized thermal separation block ensure high energy savings and improve the ecological footprint. In addition, the chimney system also enables energy savings due to the structural design and mode of operation.

Functional

The ABSOLUT energy-saving chimney is suitable for all types of fireplaces (gaseous, liquid and solid fuels such as wood or pellets) with ambient air-dependent and ambient air-independent operation. The ABSOLUT chimney and flue gas system not only saves you time, material and installation costs, it also enables energy savings due to the structural design and mode of operation.

Certified & tested

The ABSOLUT universal chimney system has been tested for harmful substances by the Sentinel Haus Institute and recommended as healthy for living. It has also been tested to W3G and therefore meets the standards of condensate resistance class W, corrosion resistance class 3 and soot fire resistance class G.

Guaranteed quality

The ABSOLUT chimney is manufactured using only the highest quality materials. The ABSOLUT was therefore designed for modern house construction and is ideal for passive houses. We assure you of this with a 30-year guarantee.

Designer ready-made foot

In addition to the ABSOLUT standard product range, we offer the first chimney base for living spaces with a designer door instead of a plaster door. Thanks to the flush-fitting door with its clear design, the new base integrates harmoniously into the living environment in an almost invisible way and, for the first time, fulfills the client's wish for an attractive appearance for living spaces. This makes basement-free building even more beautiful!

Gallery (Pictures & Videos)

Details & Services

Find out more about the details and services for the ABSOLUT energy-saving chimney, such as the structure, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.

Hover to zoom

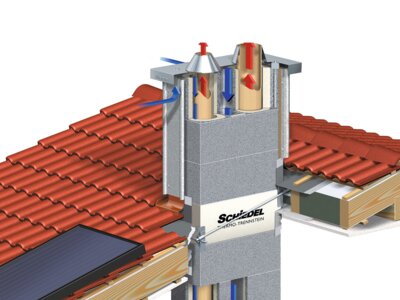

The system structure

The ABSOLUT system is based on a foundation built on site onto which a prefabricated base is placed. This contains the inspection door/ plaster door and all other components. After a ceiling duct, the flue pipe connection is attached to connect the fireplace. The chimney is topped off with an outlet cone and an air inlet head plate.

Technical data

Basic data (dimensions, weight & co.)
Wall thickness per diameter (internal)	7 - 12 mm

Application
Flue gas temperature (dry)	≤ 400 °C
Material (Inner liner)	Isostatic Ceramic
Material (Insulation)	Foamed concrete
Material (Outer case)	Lightweight concrete
Thermal resistance (m²k/w) by insulation thickness	0,27 - 0,48 m²K/W

General product features
Operating	Negative pressure (N)
Room sealed	No, Yes
Occupation	Multi, Single
Suitable for passive house	Yes
Heating technology	Condensing boiler technology, Low temperature technology, Conventional heating technology
