PRIMA PLUS - Stainless steel system for renovation
PRIMA PLUS is a refurbishment system for existing chimney shafts made of corrosion-resistant stainless steel. Especially suitable for oil and gas fireplaces in negative and positive pressure operation. Solid fuel fireplaces in negative pressure and dry operation can be connected to PRIMA PLUS. We have summarized further advantages of the renovation system for you:
The universal chimney system is ideally suited for oil and gas fireplaces in negative and positive pressure operation - for solid fuels in negative pressure operation. Fireplaces with solid fuels can also be connected to PRIMA PLUS in negative pressure and dry operation. The air/flue gas system is suitable for room air-dependent and room air-independent operation.
The universal chimney system is ideally suited for oil and gas fireplaces in negative and positive pressure operation - for solid fuels in negative pressure operation. Fireplaces with solid fuels can also be connected to PRIMA PLUS in negative pressure and dry operation. The air/flue gas system is suitable for room air-dependent and room air-independent operation (co-current and counter-current operation).
It is particularly optimized for retrofitting or renovation. Thanks to the inserted lip seal and PRIMA PLUS plug-in connection, it is also overpressure-proof. The corrosion-resistant stainless steel protects against aggressive acids in the flue gases, corrosion and soot fires.
The universal chimney system is ideally suited for oil and gas fireplaces in negative and positive pressure operation - for solid fuels in negative pressure operation. Fireplaces with solid fuels can also be connected to PRIMA PLUS in negative pressure and dry operation. The air/flue gas system is suitable for room air-dependent and room air-independent operation.
The PRIMA PLUS system is manufactured using only the highest quality materials. The pipe is butt-welded throughout and made of corrosion-resistant stainless steel. It therefore offers protection against aggressive acids in the flue gases, corrosion and soot fires. With an inserted lip seal, the system is also overpressure-proof. We therefore guarantee the system's functionality for 10 years.
The PRIMA PLUS system is manufactured using only the highest quality materials. The pipe is butt-welded throughout and made of corrosion-resistant stainless steel. It therefore offers protection against aggressive acids in the flue gases, corrosion and soot fires. With an inserted lip seal, the system is also overpressure-proof. We therefore guarantee the system's functionality for 10 years.

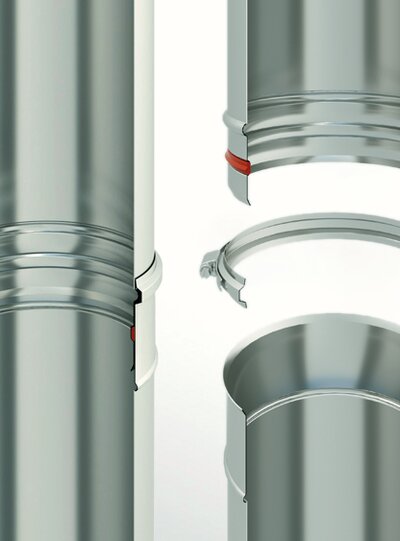

The precisely fitting connection system with push-fit socket connection (push-fit system) and the low weight ensure quick and safe installation. The pipe is butt-welded throughout, so no welding work is required on site - the renovation chimney is ready for immediate use.
The precisely fitting connection system with push-fit socket connection (push-fit system) and the low weight ensure quick and safe installation. The pipe is butt-welded throughout, so no welding work is required on site - the renovation chimney is ready for immediate use.
ME is a modular single-walled exhaust air & gas flue system made of stainless steel. It is suitable for refurbishments, boilers, etc.
ICS is a moisture-resistant, double-walled stainless steel flue gas system with low weight suitable for all fuels & negative/ positive pressure.
Stainless steel system for inserting bent chimneys. Easy and quick installation without extensive demolition work.
Find out more about the details and services for the PRIMA PLUS system, such as the structure, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.

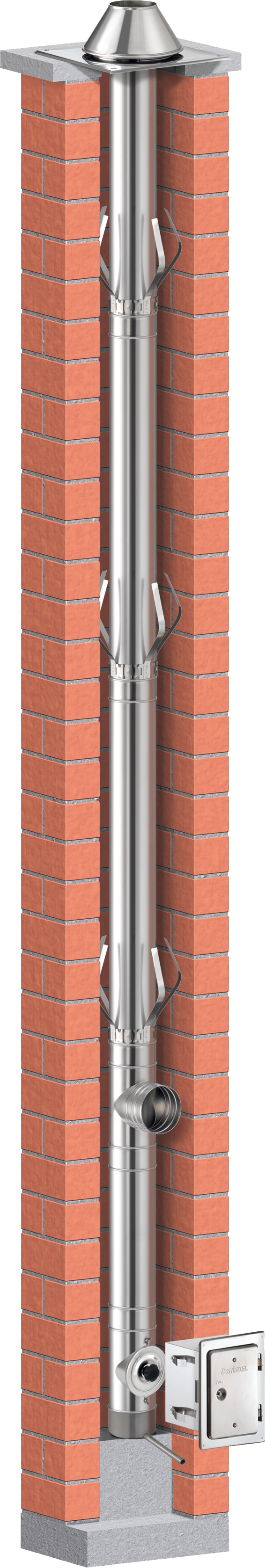

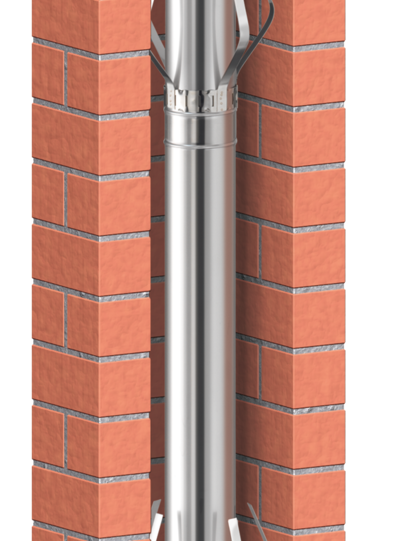

Once sufficiently large installation openings have been created for the inspection opening and the flue pipe connection, the individual components of the system can be installed. The individual components are inserted into each other and secured with a clamping strap if necessary. At their upper end, the elements have a sleeved end into which the plug-in end of the following element is inserted. To finish off, the shaft cover prevents rainwater from penetrating the existing chimney. The pipe column is guided centrally using spacer springs and the set screws of the shaft cover
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,6 - 1,0 mm |
| Application | |
Flue gas temperature (wet) |
≤ 600 °C |
Flue gas temperature (dry) |
≤ 600 °C |
Material (Inner liner) |
AISI 316L-EN 1.4404 |
Material (Outer case) |
Material no.: 1.4404 |
| General product features | |
Operating |
Humid, Dry, Negative pressure (N), Positive pressure (P-H) |
Room sealed |
No |
Area of application |
Oil fireplaces, Gas fireplaces |
Occupation |
Single, Multi |
Suitable for passive house |
No |
Heating technology |
Condensing boiler technology, High pressure 5000 Pa, Low temperature technology |
At Schiedel, service is more than just a friendly voice on the phone. Service is an essential part of the Schiedel total package. In addition to product quality, safety, reliability and innovative strength as well as a good price-performance ratio, customer satisfaction is significantly influenced by our service. We offer the following services for the PRIMA PLUS stainless steel chimney:
Are you looking for tips or a sales advisor in your area? Simply enter your zip code and you will find the contact details of the sales advisor in your area.
In our FAQs you will find the most important answers to Schiedel products and their application.
Find the right contact person for our ceramics and stainless steel customer center here.
Are you a building contractor, architect or chimney sweep - a true professional? Then you've come to the right place. Enclosed you will find all relevant detailed information such as all relevant downloads (PDF files) for the product or our 3D CAD/BIM database.
2D CAD Cells Prima Plus Ø100
ZIP (739.95 KB)
2D CAD Cells Prima Plus Ø130
ZIP (740.03 KB)
2D CAD Cells Prima Plus Ø150
ZIP (919.91 KB)
2D CAD Cells Prima Plus Ø180
ZIP (746.3 KB)
2D CAD Cells Prima Plus Ø200
ZIP (890.91 KB)
2D CAD Cells Prima Plus Ø230
ZIP (876.91 KB)
2D CAD Cells Prima Plus Ø250
ZIP (1.01 MB)
2D CAD Cells Prima Plus Ø300
ZIP (971.63 KB)
2D CAD Cells Prima Plus Ø80
ZIP (781.8 KB)
2D CAD Cells Prima Plus spigots
ZIP (677.28 KB)
Our online database gives you access to over 4,000 drawings for our stainless steel, ceramic and chimney systems. Register now and download.
