Schiedel TECNOFLEX: Flexible stainless steel chimney system
It not only provides a spectacular finish to your chimney thanks to its clampless design, but also combines design & technology in one component.

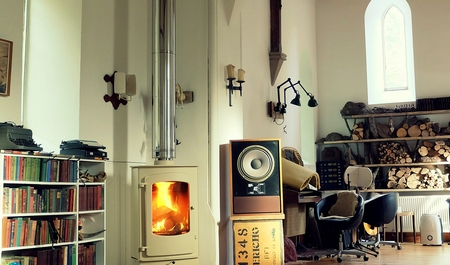

ICID PLUS is a twin wall flue chimney system and durable, Corrosion-Resistant Solution for Stoves, Biomass, and Condensing Boilers.
PRIMA SMOOTH is a precision engineered product, designed for use on atmospheric wood burning & multifuel appliances.
Find out more about the details and services for the TECNOFLEX gas flue system, such as the design, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.

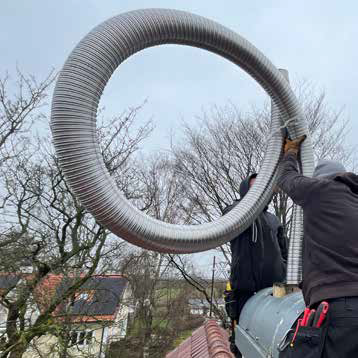

TECNOFLEX is the premier twin-wall flexible chimney liner designed for use with wood-burning and solid fuel stoves. It features a unique screw-fit action for easy installation and increased security. The system includes a choice of three different terminal designs, catering to various installation needs. TECNOFLEX offering superior corrosion resistance and durability. The single strip design and specially engineered joints provide enhanced strength and longevity. TECNOFLEX is marked with clear meter length markers for precise cutting and installation.
| Basic data (dimensions, weight & co.) | |
Diameter (external) |
80 mm |
Wall thickness per diameter (internal) |
0,12 mm |
Wall thickness per diameter (outside) |
0,12 mm |
| Application | |
Flue gas temperature (dry) |
≤ 600 °C |
Material (Inner liner) |
Material no.: 1.4404 |
| General product features | |
Operating |
Negative pressure (N), Positive pressure (P-H) |
Area of application |
Heating systems |
Occupation |
Single |
Suitable for passive house |
Yes |
Heating technology |
Condensing boiler technology, Conventional heating technology |
At Schiedel, service is more than just a friendly voice on the phone. Service is an essential part of the Schiedel total package. In addition to product quality, safety, reliability and innovative strength as well as a good price-performance ratio, customer satisfaction is significantly influenced by our service. We offer the following services for the TECNOFLEX chimney:
Are you looking for tips or a sales advisor in your area? Simply enter your zip code and you will find the contact details of the sales advisor in your area.
In our FAQs you will find the most important answers to Schiedel products and their application.
Find the right contact person for our ceramics and stainless steel customer center here.
Our online database gives you access to over 4,000 drawings for our stainless steel, ceramic and chimney systems. Register now and download.
