ICID PLUS - The high-performance double-wall chimney for Stove & Boilers

ICID PLUS

ICID PLUS

ICID PLUS Twin Wall Flue, is ideal not only for traditional stoves but also for pellet stoves, biomass appliances, mini/micro CHP and even condensing boilers capable of withstanding positive pressure.

TO CONTACT & ADVICE

Highlights

ICID Plus Twin Wall Flue, is ideal not only for traditional stoves but also for pellet stoves, biomass appliances, mini/micro CHP and even condensing boilers capable of withstanding positive pressure. The system is designed so that the outer case is load bearing and the inner liner is free to expand independently, therefore thermal expansion is accommodated within each and every joint of the system. Available in two versions with a choice of either a bright annealed or a matt black painted stainless steel outer case.

Quicklinks

Functional

ICID Plus Twin Wall Flue, is ideal not only for traditional stoves but also for pellet stoves, biomass appliances, mini/micro CHP and even condensing boilers capable of withstanding positive pressure. Condensing gas and oil appliances, with continuous operating temperatures up to 200°C, short firing up to 250°C and overpressure up to 200Pa at the appliance outlet are also possible. For open or closed stoves with continuous operating temperatures of up to 450°C.
ICID Plus Twin Wall Flue, is ideal not only for traditional stoves but also for pellet stoves, biomass appliances, mini/micro CHP and even condensing boilers capable of withstanding positive pressure. Condensing gas and oil appliances, with continuous operating temperatures up to 200°C, short firing up to 250°C and overpressure up to 200Pa at the appliance outlet are also possible. For open or closed stoves with continuous operating temperatures of up to 450°C.

Easy installation & safe operation

The connection system with socket joint and integrated double-rail clamping strips ensures fast and secure assembly thanks to the double screw connection. No thermal insulation or welding work is required on site. The surface temperature is very low and the handy dimensions with low weight have high stability, yet are easy to install.
The connection system with socket joint and integrated double-rail clamping strips ensures fast and secure assembly thanks to the double screw connection. No thermal insulation or welding work is required on site. The surface temperature is very low and the handy dimensions with low weight have high stability, yet are easy to install.

High quality

ICID PLUS comes with high-quality materials as standard: the inner pipe is made of 316L stainless steel and the outer casing of electroplated stainless steel. The high-temperature-resistant mineral fibre insulation provides effective insulation. Both the inner pipe and the outer casing are butt-welded throughout.
ICID PLUS comes with high-quality materials as standard: the inner pipe is made of 316L stainless steel and the outer casing of electroplated stainless steel. The high-temperature-resistant mineral fibre insulation provides effective insulation. Both the inner pipe and the outer casing are butt-welded throughout.

Gallery (Images & Videos)

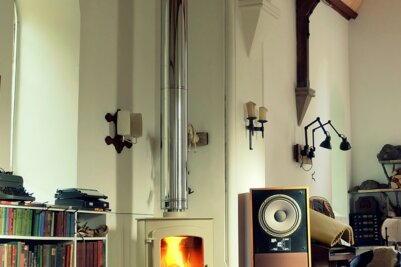

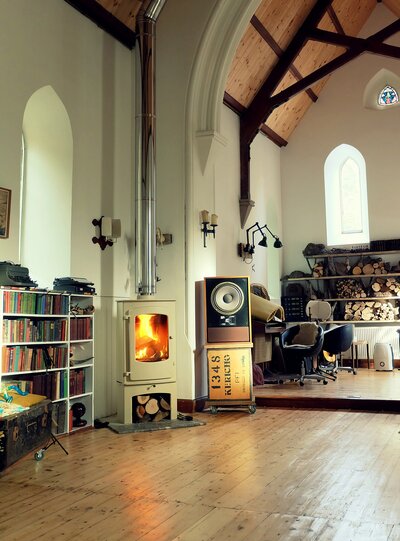

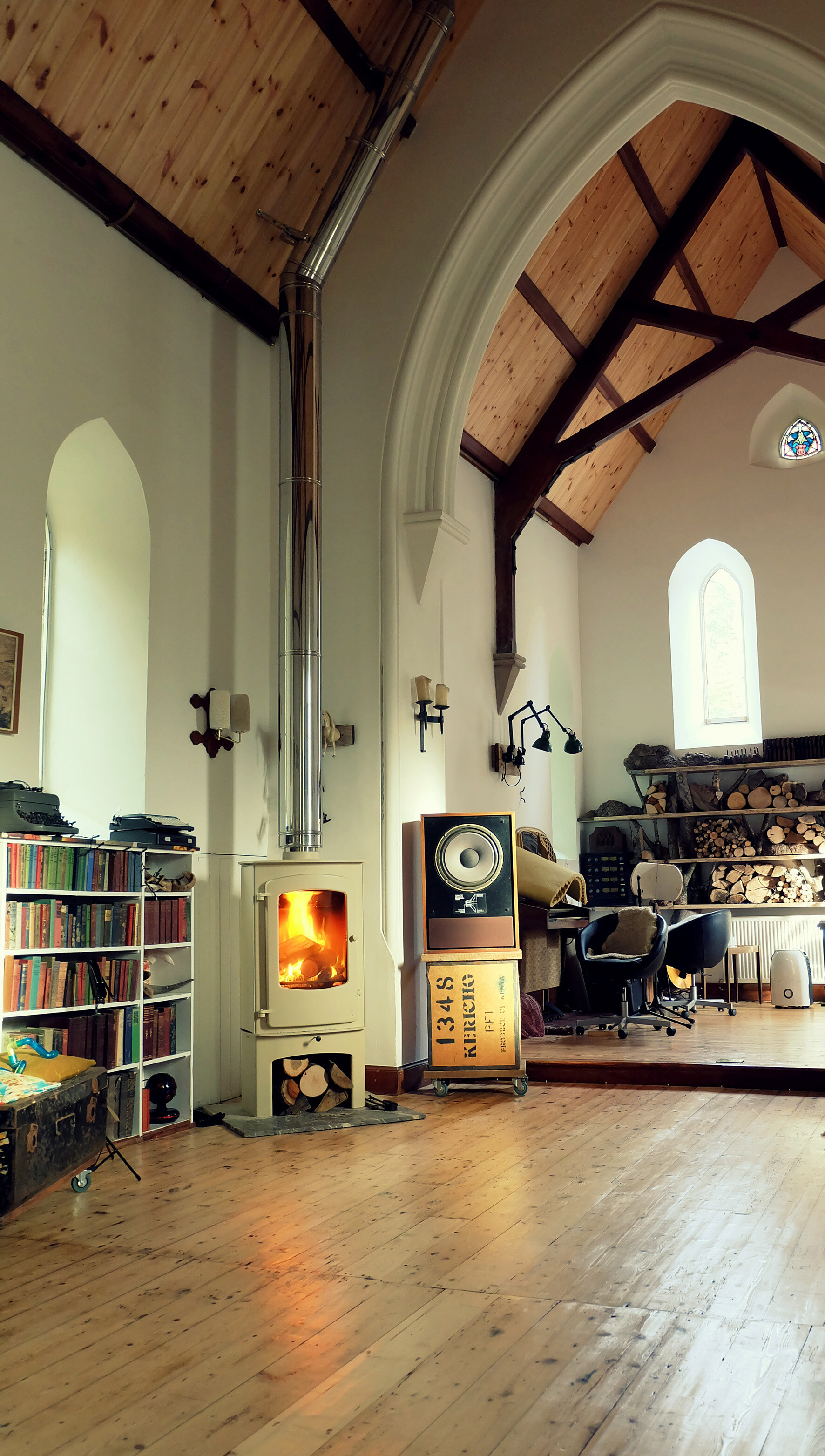

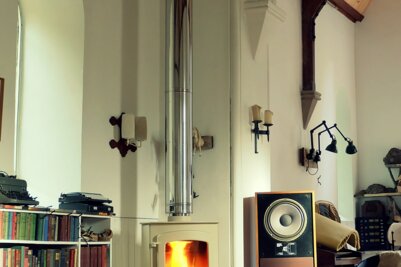

St Marys
ICID PLUS - Internal and external with G50
ICID PLUS - Typical Condensing Boiler Installation
ICID PLUS - Typical Biomass Installation

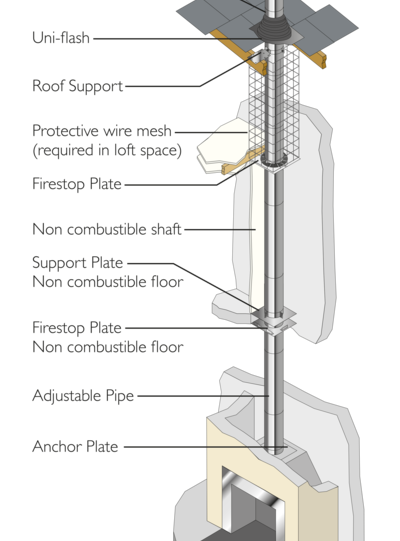

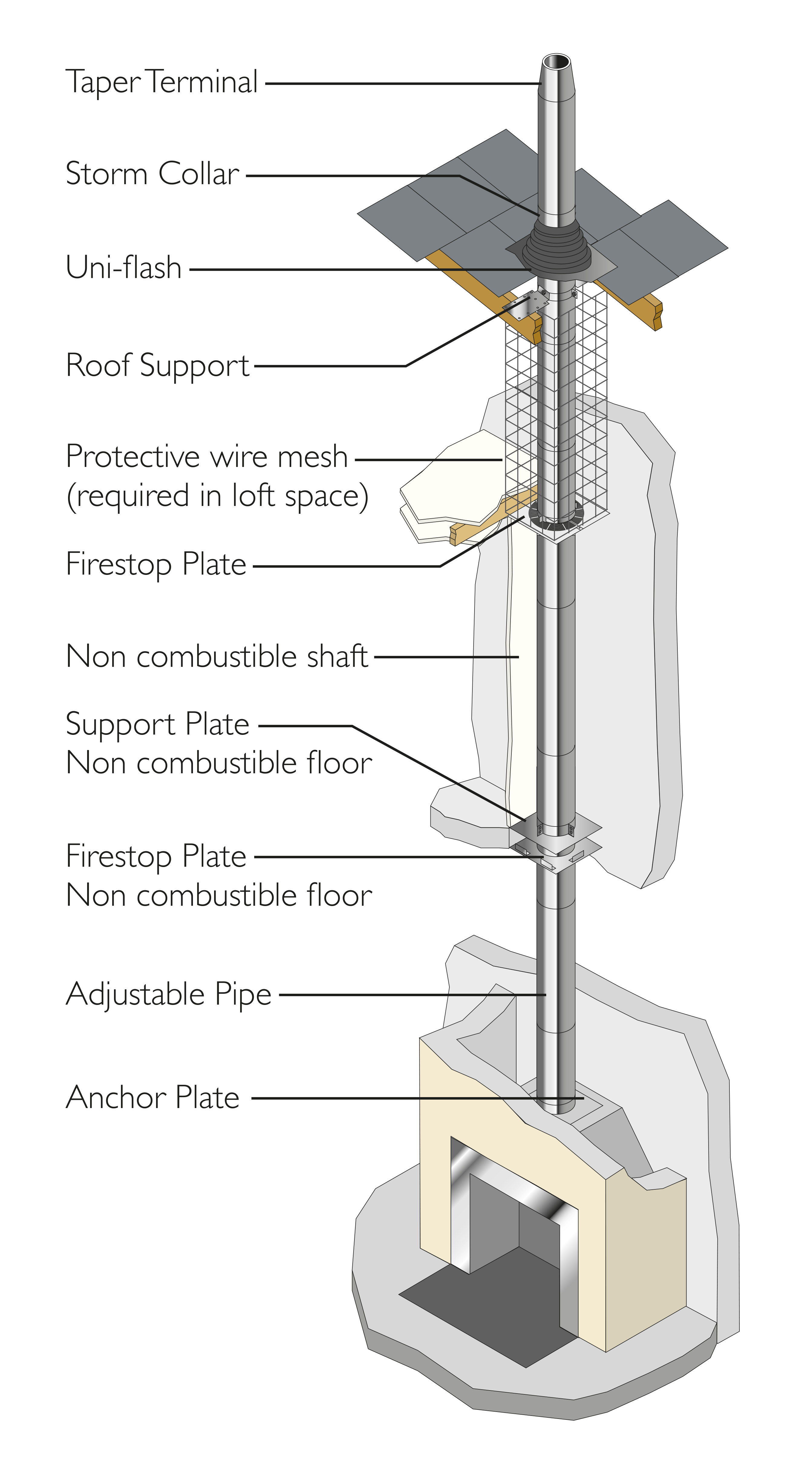

ICID PLUS - Internal House with Non-Combustible Floors

Further interesting content

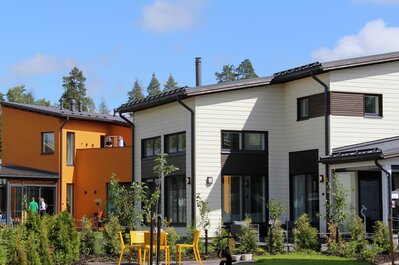

PERMETER SMOOTH - A designed chimney

PERMETER SMOOTH - A designed chimney

It not only provides a spectacular finish to your chimney thanks to its clampless design, but also combines design & technology in one component.

TO THE PRODUCT PERMETER SMOOTH
TECNOFLEX - Flexible steel chimney system

TECNOFLEX - Flexible steel chimney system

Stainless steel system for inserting bent chimneys. Easy and quick installation without extensive demolition work.

TO THE PRODUCT TECNOFLEX

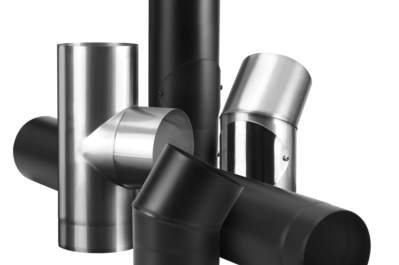

PRIMA SMOOTH - Wood & multifuel appliances!
