MF - Double-walled, pre-insulated & modular
MF (formerly METALOTERM MF) is a modular, double-walled and pre-insulated flue gas system and exhaust air system made of stainless steel with a special internal lip seal. It can be used universally at low and high temperatures with and without condensation in negative and positive pressure. MF is therefore suitable for a wide range of applications such as condensing boilers, low temperature and solid fuel fireplaces and is soot fire resistant. We have summarized all the advantages of the flue gas pipe for you:
MF is a modular, double-walled and pre-insulated flue gas/exhaust air system made of stainless steel with a special internal lip seal. It can be used universally at low and high temperatures with and without condensate accumulation in negative and positive pressure. The inner and outer walls are made of high-quality stainless steel.
MF is a modular, double-walled and pre-insulated flue gas/exhaust air system made of stainless steel with a special internal lip seal. It can be used universally at low and high temperatures with and without condensate accumulation in negative and positive pressure. The inner and outer walls are made of high-quality stainless steel. When thermally heated, the inner shell can expand without stress.
The high-quality thermal insulation prevents unwanted cold and thermal bridges. The system also includes a special acid and temperature-resistant lip seal inserted at the factory. Very high soot fire resistance is guaranteed. Use as a supply and exhaust air system is also possible.
MF is a modular, double-walled and pre-insulated flue gas/exhaust air system made of stainless steel with a special internal lip seal. It can be used universally at low and high temperatures with and without condensate accumulation in negative and positive pressure. The inner and outer walls are made of high-quality stainless steel.
Only the highest quality materials and precision are used in the production of the MF chimney. Due to its proven quality, the MF flue gas and exhaust air system is guaranteed for 10 years.
Only the highest quality materials and precision are used in the production of the MF chimney. Due to its proven quality, the MF flue gas and exhaust air system is guaranteed for 10 years.

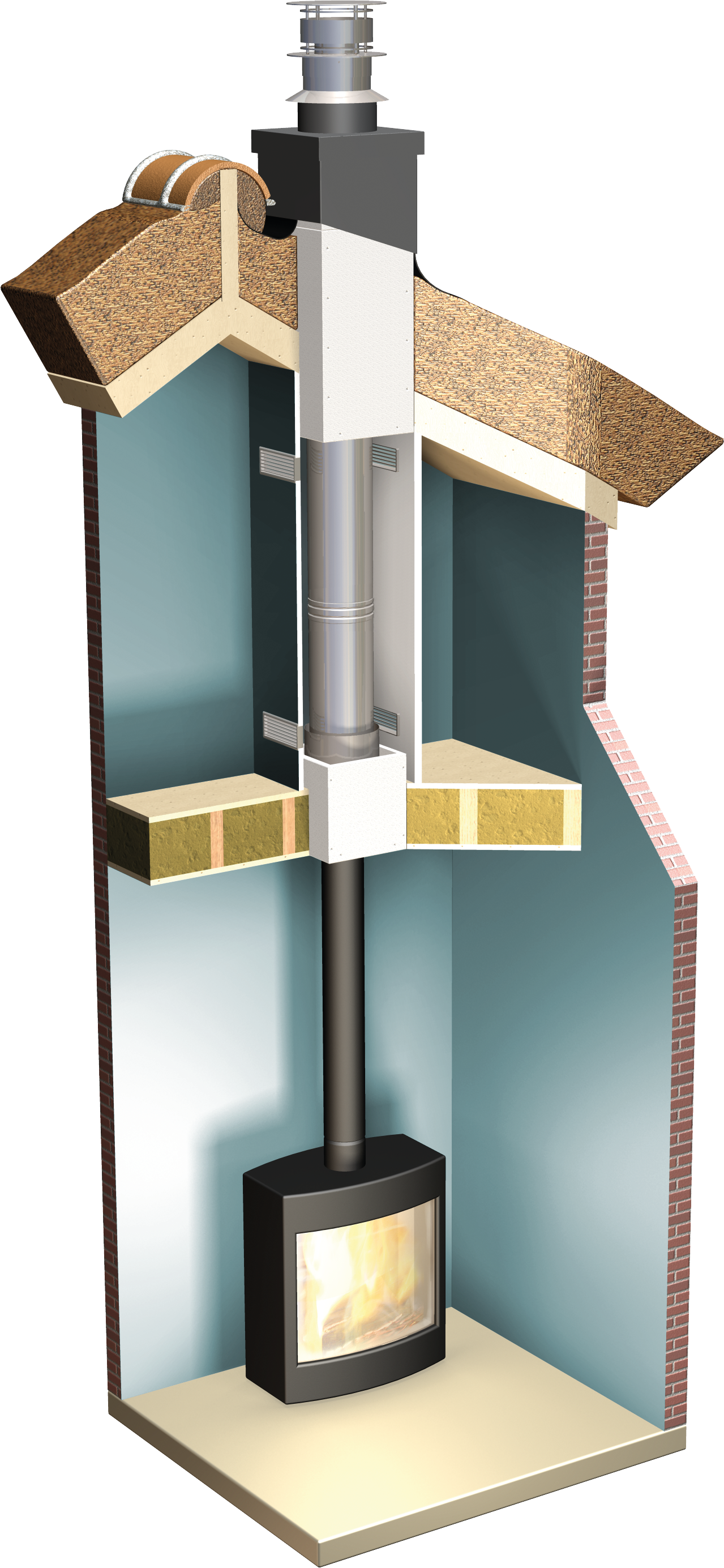

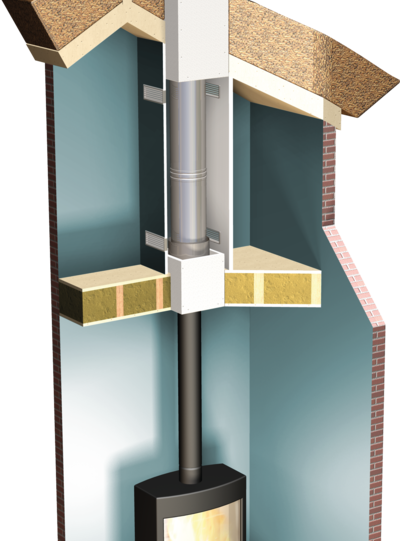

MF is a flue gas and exhaust air system for almost all areas of application. The universally applicable system is suitable for ovens, industrial plants, tiled stoves, open fireplaces, condensing boilers, low-temperature and solid fuel fireplaces. In passive houses, the system can be combined with the Isoblock, a compact wall and ceiling penetration through combustible building materials. It can also be used as a supply and exhaust air system.
MF is a flue gas and exhaust air system for almost all areas of application. The universally applicable system is suitable for ovens, industrial plants, tiled stoves, open fireplaces, condensing boilers, low-temperature and solid fuel fireplaces. In passive houses, the system can be combined with the Isoblock, a compact wall and ceiling penetration through combustible building materials. It can also be used as a supply and exhaust air system.
A modular exhaust air & gas flue system made of stainless steel. It is suitable for refurbishments, ventilation, condensing boilers, etc.
Haven't found the right product yet? Use our online assistant to find the right product for your needs.

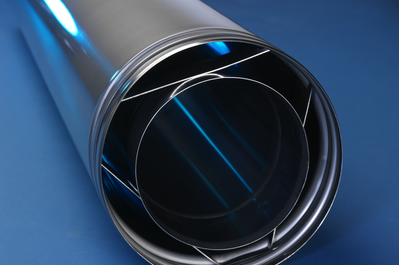

The stainless steel US air/flue gas system is ideal for high flue gas temperatures in negative pressure operation for room-sealed gas fires.
Find out more about the details and services for the MF gas flue system, such as the design, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.

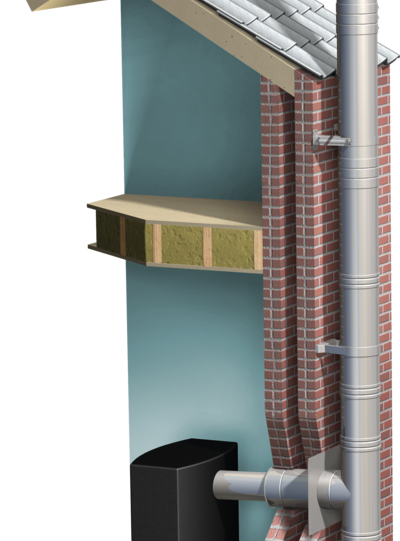

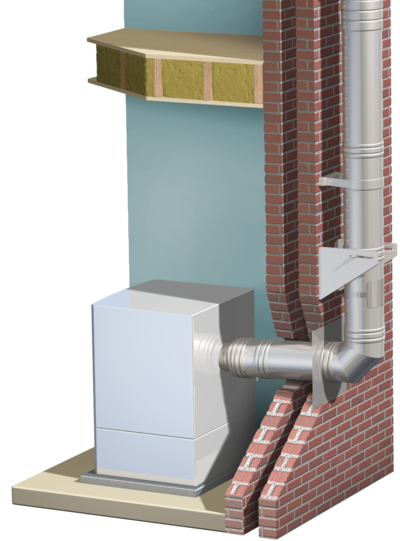

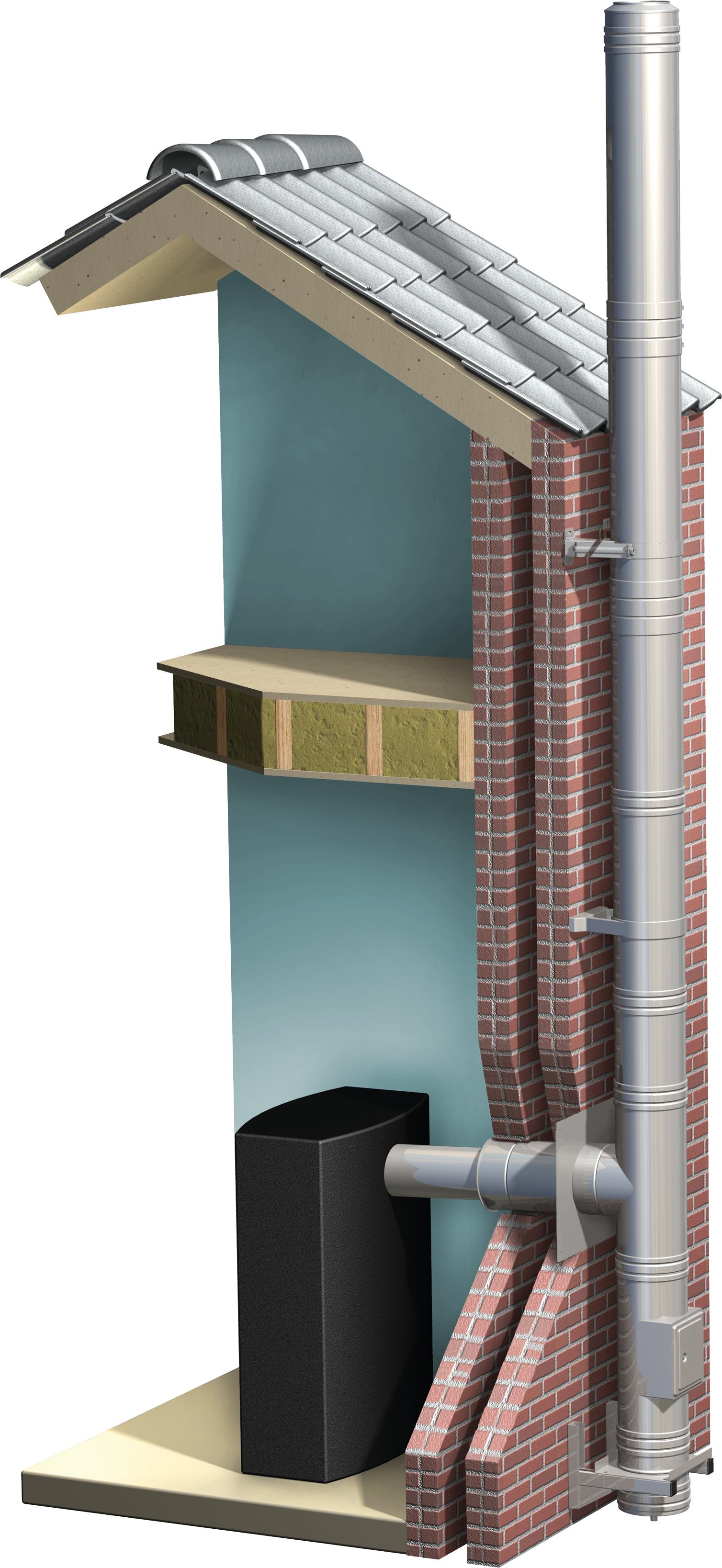

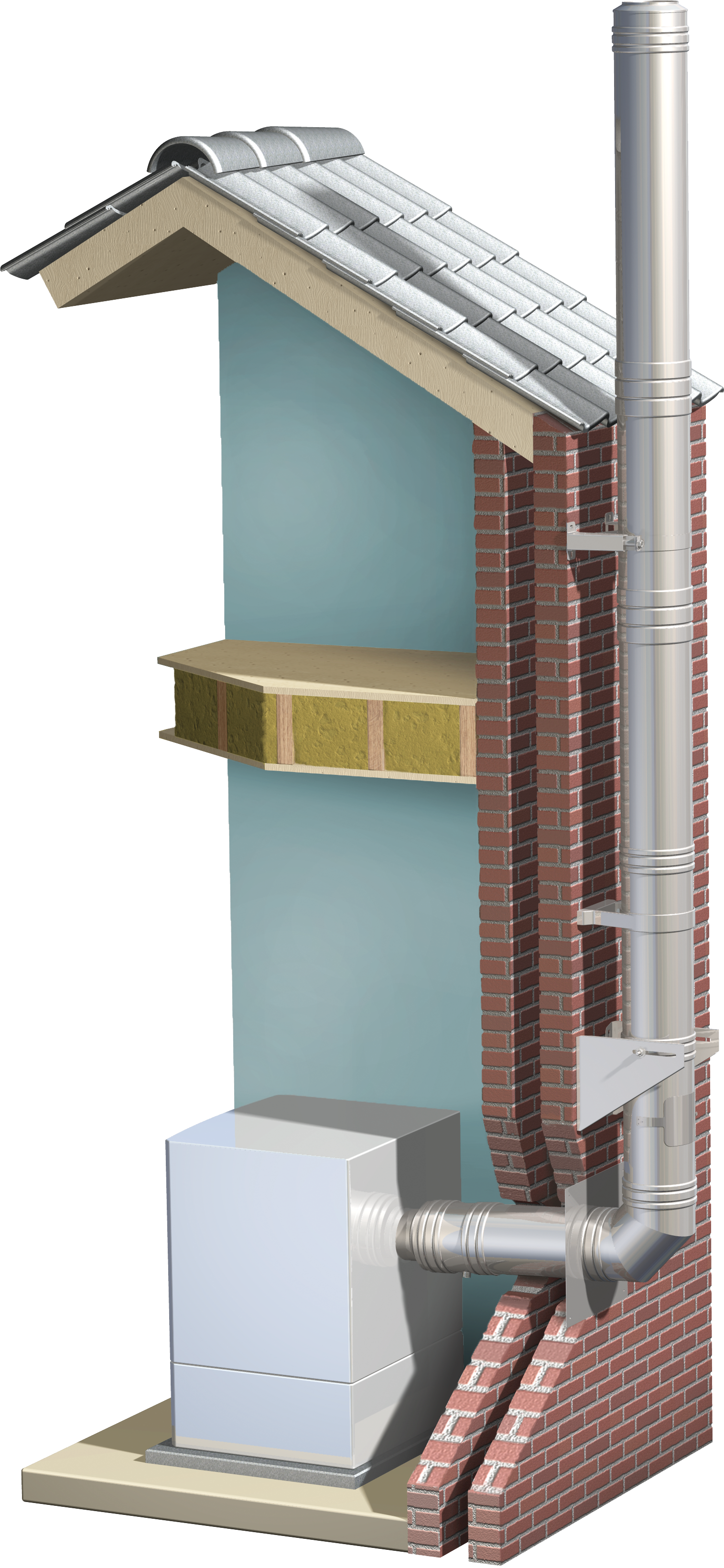

The MF system is mounted on the wall or on the floor. This includes the inspection door/cleaning door and all other components. After the wall duct to the respective heating system, the flue gas system is crowned by an outlet cone.
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,4 - 0,6 mm |
Insulation thickness per diameter |
25 - 50 mm |
Wall thickness per diameter (outside) |
0,4 - 0,5 mm |
| Application | |
Flue gas temperature (dry) |
≤ 600 °C |
Operating temperature under negative pressure |
≤ 600 °C |
Operating temperature under positive pressure |
≤ 200 °C |
Short firing temperature under positive pressure |
≤ 200 °C |
Short firing temperature under negative pressure |
≤ 600 °C |
Operating pressure |
≤ 5000 Pa |
Material (Inner liner) |
AISI 316L-EN 1.4404 |
Material (Insulation) |
Mineral fibre |
Material (Outer case) |
AISI 304-EN 1.4301 |
Thermal resistance by insulation thickness |
0,37 - 0,56 m²K/W |
| General product features | |
Operating |
Negative pressure (N), Humid, Dry, Positive pressure (P-H) |
Room sealed |
No |
Occupation |
Single, Multi |
Suitable for passive house |
No |
Heating technology |
Low temperature technology, High pressure 5000 Pa, Condensing boiler technology, Conventional heating technology |
