ICS 5000 - High-pressure-tight flue gas pipe for industry
The ICS 5000 stainless steel flue gas system for dry operation is the perfect solution when it comes to negative and/or positive pressures of up to 5000 Pa and high flue gas temperatures. It can be used indoors and outdoors and offers a wide range of applications. The double-walled stainless steel flue gas system in element design features high-quality materials and highly effective thermal insulation as standard. We have summarized all the advantages of the flue gas pipe for you:

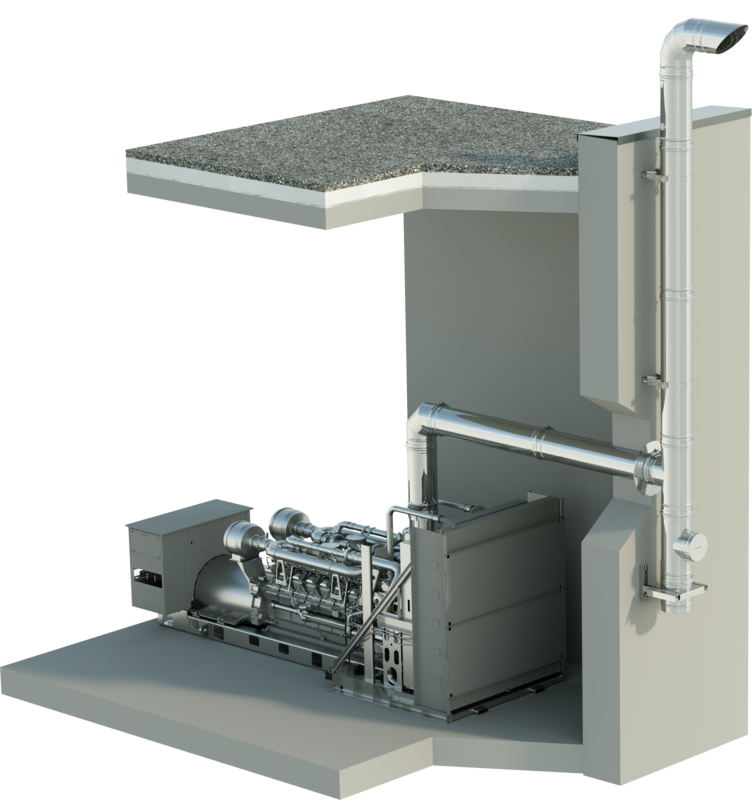

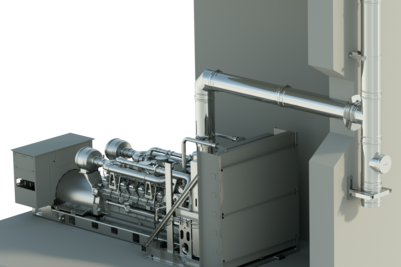

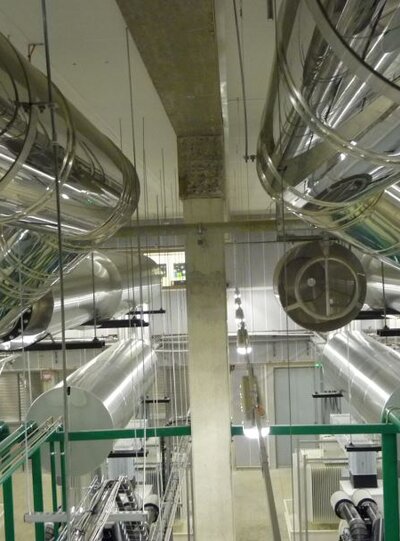

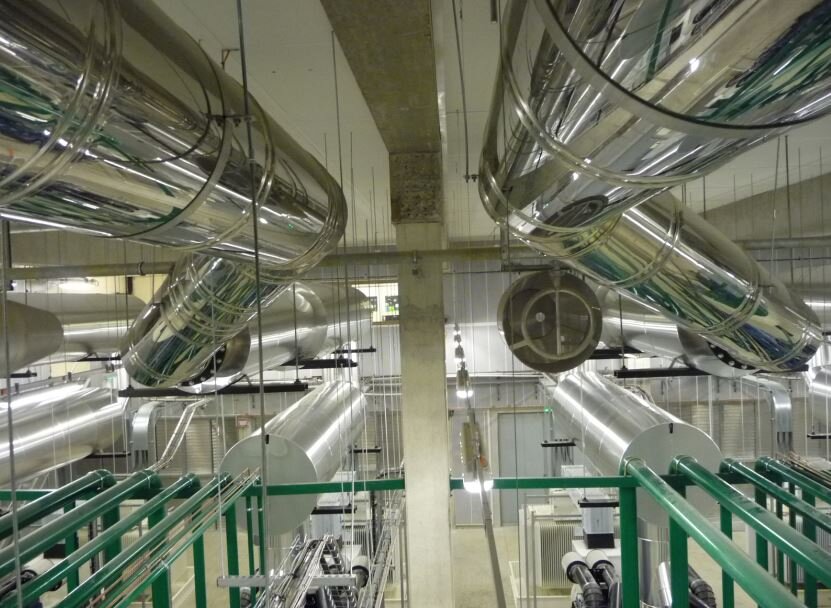

Suitable for indoor and outdoor use, the ICS 5000 system offers a wide range of applications for diesel, gas and oil exhaust gases as well as for industrial process exhaust air. The range of applications extends from industrial applications to diesel generators, emergency generators, boilers, exhaust air (no kitchen exhaust air) and forging furnaces. The flue gas system is also suitable for wall and floor mounting.
Suitable for indoor and outdoor use, the ICS 5000 system offers a wide range of applications for diesel, gas and oil exhaust gases as well as for industrial process exhaust air. The range of applications extends from industrial applications to diesel generators, emergency generators, boilers, exhaust air (no kitchen exhaust air) and forging furnaces. The flue gas system is also suitable for wall and floor mounting.
The double-walled flue gas system in element design with integrated thermal insulation is the perfect solution when it comes to negative and/or positive pressures of up to 5000 Pa and high flue gas temperatures thanks to the pre-assembled, special high-temperature seal.
The double-walled flue gas system in element design with integrated thermal insulation is the perfect solution when it comes to negative and/or positive pressures of up to 5000 Pa and high flue gas temperatures thanks to the pre-assembled, special high-temperature seal. Exhaust gas temperatures of up to 600 °C are possible in continuous operation, although tests up to 1000 °C have been carried out. The high-temperature-resistant mineral wool insulation ensures continuous insulation over the entire length of the flue gas pipe
This leads to the operating temperature being reached quickly and keeps the external surface temperatures low. In addition, the inner pipe column of the ICS 5000 system can expand without stress and no expansion joints are required in the event of thermal expansion. The system is suitable for dry operation.
The double-walled flue gas system in element design with integrated thermal insulation is the perfect solution when it comes to negative and/or positive pressures of up to 5000 Pa and high flue gas temperatures thanks to the pre-assembled, special high-temperature seal.
ICS 5000 comes with high-quality materials as standard: the inner pipe is made of 316L stainless steel and the outer casing of 304 stainless steel. The high-temperature-resistant mineral wool insulation provides effective insulation. Both the inner pipe and the outer casing are butt-welded throughout.
ICS 5000 comes with high-quality materials as standard: the inner pipe is made of 316L stainless steel and the outer casing of 304 stainless steel. The high-temperature-resistant mineral wool insulation provides effective insulation. Both the inner pipe and the outer casing are butt-welded throughout.
Both the inner pipe and the outer casing are continuously butt-welded. A lip seal is inserted into the push-fit side of the outer casing. The stainless steel inner and outer pipes have a profiled push-fit socket connection and the clamping band is in direct contact.
Both the inner pipe and the outer casing are continuously butt-welded. A lip seal is inserted into the push-fit side of the outer casing. The stainless steel inner and outer pipes have a profiled push-fit socket connection and the clamping band is in direct contact. The special design guarantees quick and easy installation, safe operation up to
5000 Pa, high stability and continuous thermal insulation. The clamping band is also optionally available as a static clamping band. This means that up to 3 m can be planned free-standing after the last lateral support without any problems.
Both the inner pipe and the outer casing are continuously butt-welded. A lip seal is inserted into the push-fit side of the outer casing. The stainless steel inner and outer pipes have a profiled push-fit socket connection and the clamping band is in direct contact.
The double-walled stainless steel flue gas system with continuous thermal insulation in a handy element design. Suitable for all fuels.
Haven't found the right product yet? Use our online assistant to find the right product for your needs.
The perfect stainless steel flue gas solution when it comes to negative & positive pressures of up to 5000 Pa and high flue gas temperatures.
Find out more about the details and services for the ICS 5000 gas flue system, such as the design, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.
The double-walled flue gas system ICS 5000 can be installed either on the wall or on the floor. The wall duct follows the plaster door, after which the heating system is connected. The roof duct is made with the environmentally friendly WAKAFLEX roof duct. The ICS 5000 consists of an outer casing and an inner pipe, between which thermal insulation is integrated. The system is also equipped with a capillary bead, inner seal and (static) clamping tape.
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,5 - 1,0 mm |
Wall thickness per diameter (outside) |
0,5 - 0,7 mm |
| Application | |
Flue gas temperature (dry) |
≤ 600 °C |
Material (Inner liner) |
AISI 316L-EN 1.4404 |
Material (Insulation) |
Mineral fibre |
Material (Outer case) |
Material no.: 1.4301 |
Thermal resistance by insulation thickness |
0,37 - 0,56 m²K/W |
| General product features | |
Operating |
Dry, Negative pressure (N), Positive pressure (P-H) |
Room sealed |
No |
Area of application |
Heating systems, Generators, Emergency generators |
Occupation |
Single, Multi |
Suitable for passive house |
No |
Heating technology |
High pressure 5000 Pa, Condensing boiler technology, Low temperature technology |
