ME - The single-walled exhaust air & flue gas system
ME (formerly METALOTERM ME) is a single-walled, modular exhaust air and flue gas system made of stainless steel. The universally applicable system is suitable for renovation, ventilation and extraction, condensing boilers, low-temperature and solid fuel fireplaces. It is also characterized by quick and easy installation with the aid of a sleeve locating edge and retracted insertion ends. We have summarized all the advantages of the ME system for you:
ME is a modular, single-walled flue gas and exhaust air system made of stainless steel with a special acid-resistant and temperature-resistant lip seal inserted at the factory. It can be used universally at low and high temperatures with and without condensation in negative and positive pressure.
ME is a modular, single-walled flue gas and exhaust air system made of stainless steel with a special acid-resistant and temperature-resistant lip seal inserted at the factory. It can be used universally at low and high temperatures with and without condensation in negative and positive pressure. ME is soot fire resistant and can also be used as a supply and exhaust air system. The air/flue gas system is also characterized by quick and easy installation with the aid of a sleeve locating edge and retracted insertion ends. The components are very light, but still have enormous dimensional stability thanks to stiffening beads. The flue gas system is compatible with the MF, UE and US systems.
ME is a modular, single-walled flue gas and exhaust air system made of stainless steel with a special acid-resistant and temperature-resistant lip seal inserted at the factory. It can be used universally at low and high temperatures with and without condensation in negative and positive pressure.
The universally applicable air/flue gas system is suitable for renovations, ventilation and air extraction, condensing boilers or low-temperature and solid fuel fireplaces.
The universally applicable air/flue gas system is suitable for renovations, ventilation and air extraction, condensing boilers or low-temperature and solid fuel fireplaces.
Only the highest quality materials and precision are used in the production of the ME chimney. The outer casing is made of high-quality stainless steel.
Only the highest quality materials and precision are used in the production of the ME chimney. The outer casing is made of high-quality stainless steel.
ME is a modular single-walled exhaust air & gas flue system made of stainless steel. It is suitable for refurbishments, boilers, etc.
ICS is a moisture-resistant, double-walled stainless steel flue gas system with low weight suitable for all fuels & negative/ positive pressure.
The stainless steel air/flue gas system is ideal for high flue gas temperatures in negative pressure operation for room-sealed gas fires.
Find out more about the details and services for the ME gas flue system, such as the design, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.

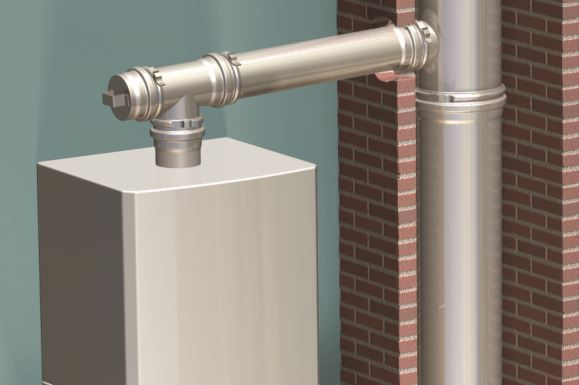

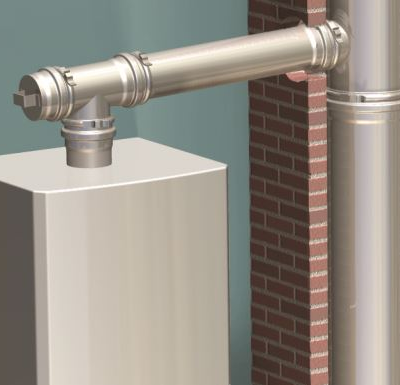

The ME system is attached to the fireplace and then fed into the internal brick chimney. The system is routed through each floor and ends at the roof with a cover.
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,5 - 0,8 mm |
| Application | |
Flue gas temperature (dry) |
≤ 600 °C |
Operating temperature under negative pressure |
≤ 600 °C |
Operating temperature under positive pressure |
≤ 200 °C |
Short firing temperature under positive pressure |
≤ 200 °C |
Short firing temperature under negative pressure |
≤ 600 °C |
Operating pressure |
≤ 5000 Pa |
Material (Inner liner) |
AISI 316L-EN 1.4404 |
| General product features | |
Operating |
Negative pressure (N), Positive pressure (P-H) |
Room sealed |
No |
Occupation |
Single, Multi |
Suitable for passive house |
No |
Heating technology |
Low temperature technology, High pressure 5000 Pa, Condensing boiler technology, Conventional heating technology |
