Flue for a distribution centre in Amesbury.

Schiedel undertook the installation of a generator exhaust system with Dieselec Thistle for TJ Morris (who trade as Home Bargains), in Amesbury, just a stones throw from Stonehenge 😉

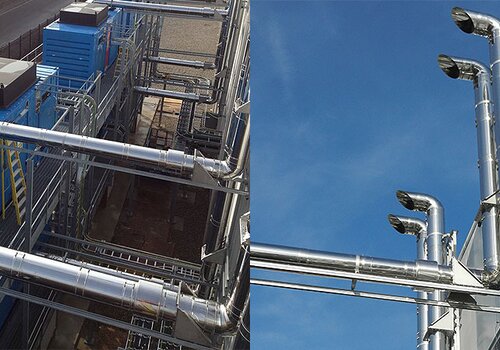

The ICS 5000 system was used and from the generator silencer flange, the Ø500mm flue turned through 180° to then ran horizontally approx. 9m to connect to a 135° tee. The flue then rose vertically for approx. 11m to termination with the offset around the building overhang.

At the base of the system was a 135° Tee, below which was positioned a support plate assembly with tee cap and a drain connection. The system terminated above the roof and was finished with a tapered terminal.

All systems were horizontally supported by means of ceiling hangers and vertically by means of adjustable wall brackets and support plates.
